Gyraf Audio | 103_008

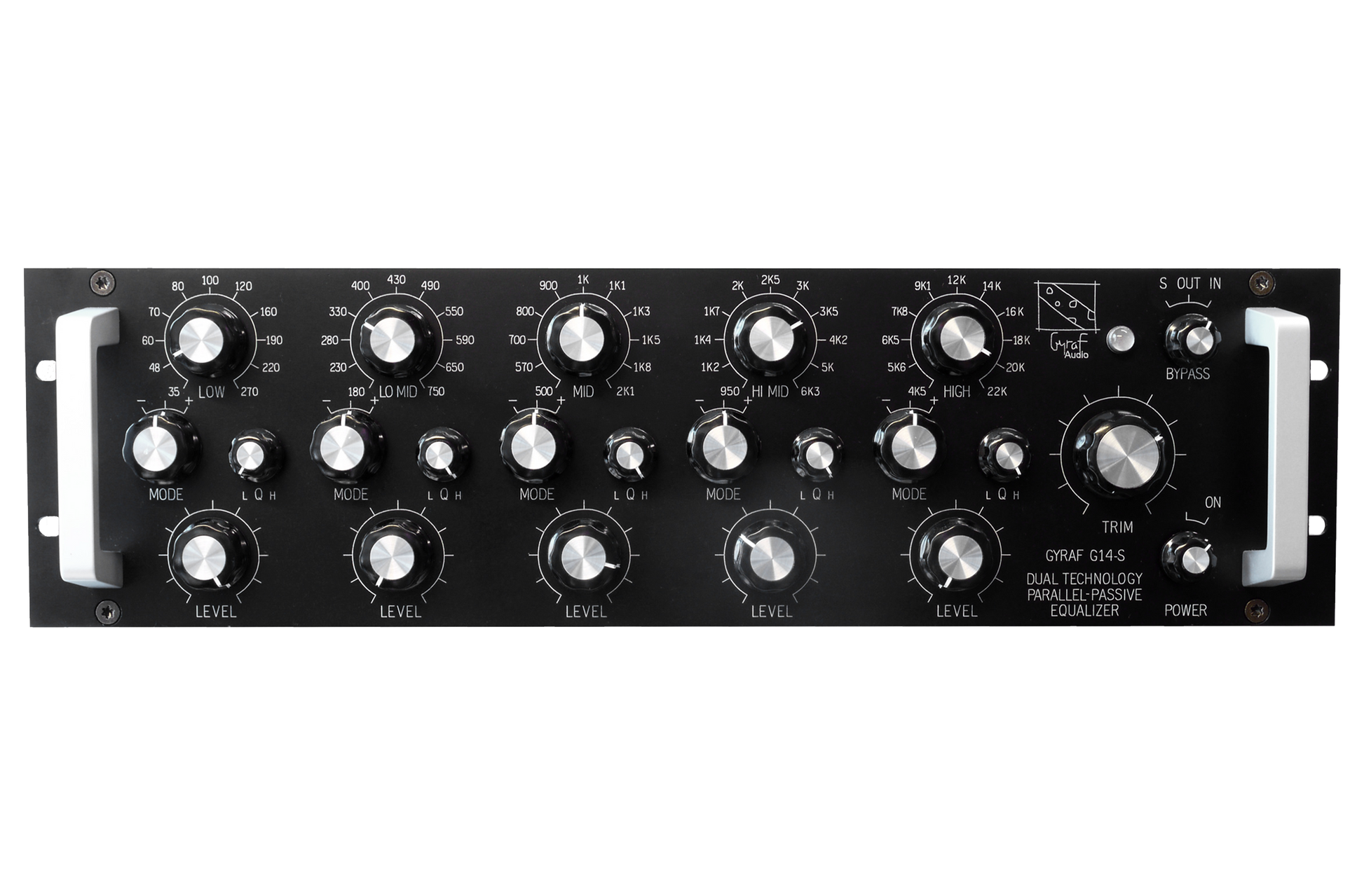

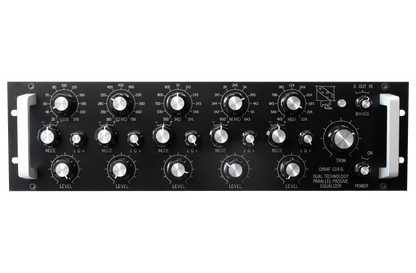

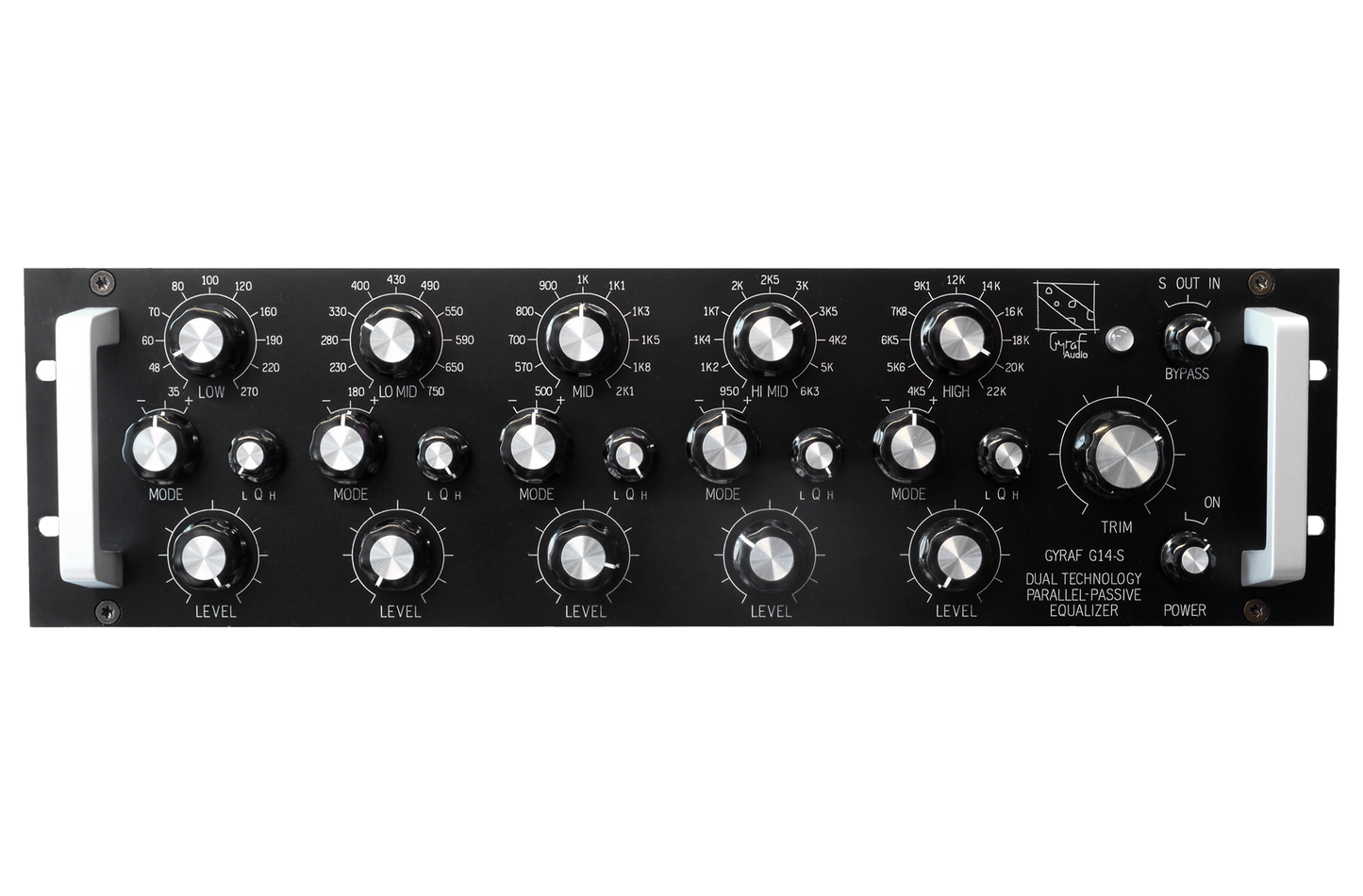

G14-S Stereo Passive EQ

G14-S Stereo Passive EQ

Regular price €4.999,00
Regular price Sale price €4.999,00
Sale Sold out
Taxes included.
In Stock, usually ships within 1-2 business days
Quantity
  • Based on the first-class G14 and includes all those functions including the sound stage
  • Extension by an independent solid state chain - another EQ in the same unit
  • parallel-passive architecture with tube makeup gain amplifier
  • five bands semi-parametric equalizer
  • each band individually hard-bypassable
  • controls for frequency, Q and levels
  • tracking stereo operation, only one set of knobs to adjust
  • Switches for frequency, detented pots for Q and level, overall hard relay bypass
  • transformer balanced in- and outputs
  • "Trim" gain to ensure precise comparisons
View full details

Media

See it in Action!

GPSR Information

Manufacturer Information

Gyraf Audio
Jægergårdsgade 154C, 8000 Aarhus, Denmark

Warnings & Safety Information

  • Risk of electric shock – Never open the device while it is connected to the power supply, as high – potentially life-threatening – mains voltages are present inside. Leave maintenance work exclusively to qualified specialist personnel.
  • Water and Moisture - Do not use the unit near any source of water or in excessively moist
    environments.
  • Object and Liquid Entry - Care should be taken so that objects do not fall, and liquids are not spilled, into the enclosure through openings.
  • Ventilation - When installing the unit in a rack or any other location, be sure there is adequate
    ventilation. Improper ventilation will cause overheating and can damage the unit.
  • Heat - The unit should be situated away from heat sources, or other equipment that produce heat.
  • Power Sources - The unit should be connected to a power supply only of the type described in the
    operating instructions, or as marked on the unit.
  • Power Cord Protection - AC power supply cords should be routed so that they are not likely to be
    walked on or pinched by items placed upon or against them. Pay particular attention to cords at
    plugs, convenience receptacles, and the point where they exit from the unit. Never take hold of the
    plug or cord if your hand is wet. Always grasp the plug body when connecting or disconnecting it.
  • Non-use Periods - The AC power supply cord of the unit should be unplugged from the AC outlet when left unused for a long period of time.
  • Damage requiring maintenance – In such cases, please contact a qualified technician.
