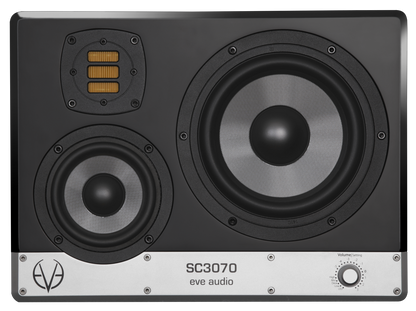

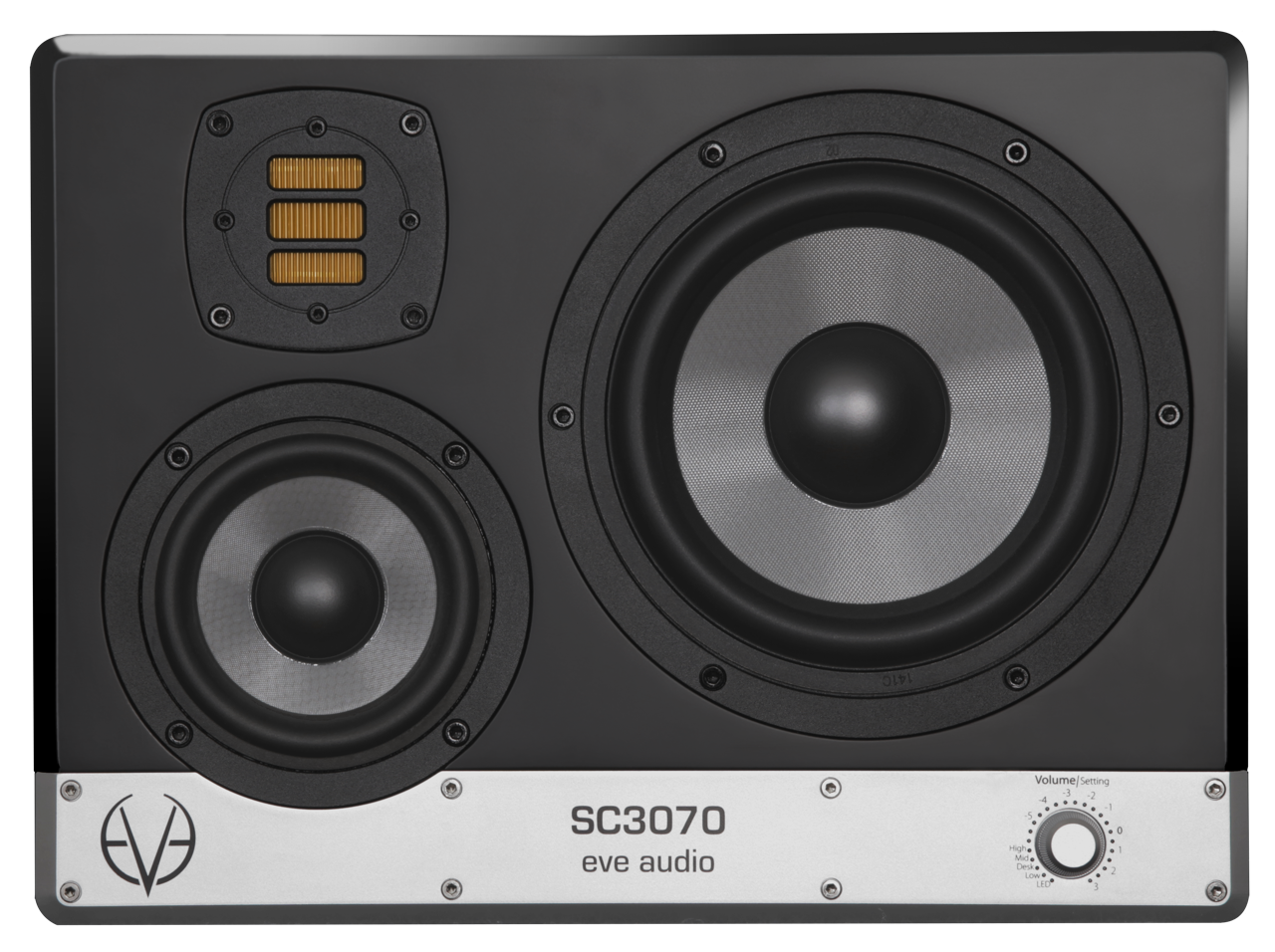

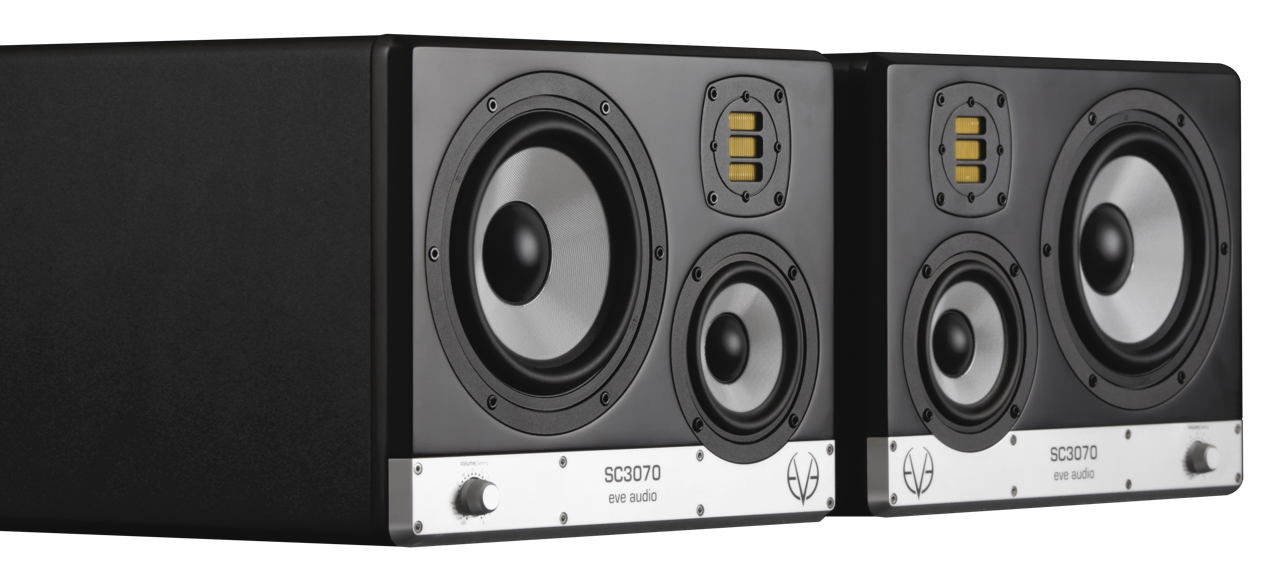

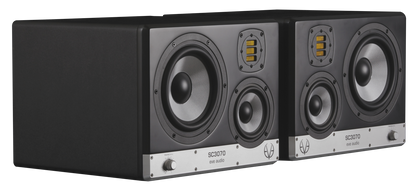

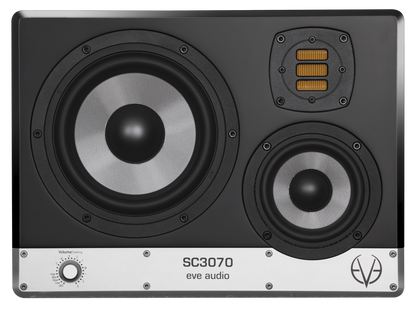

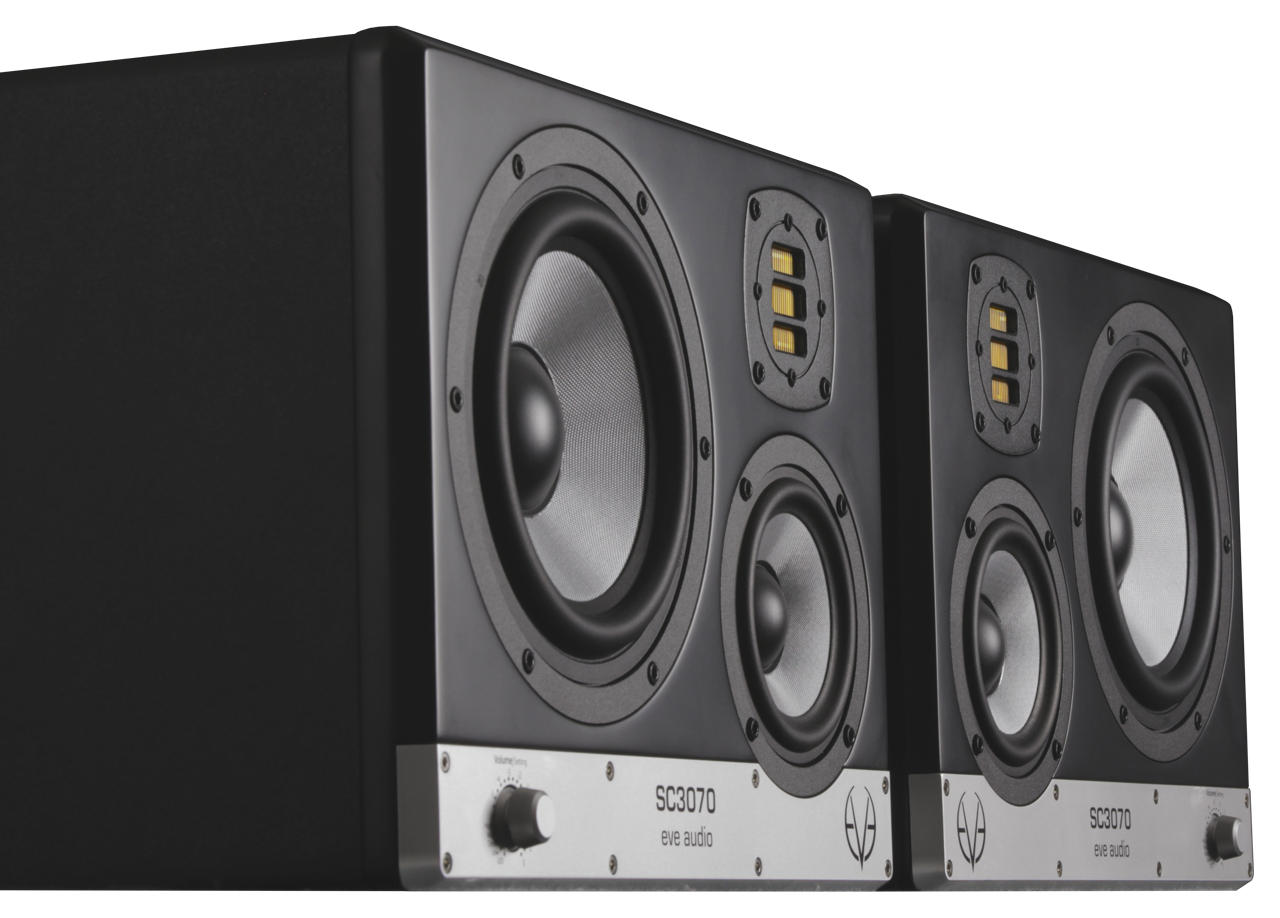

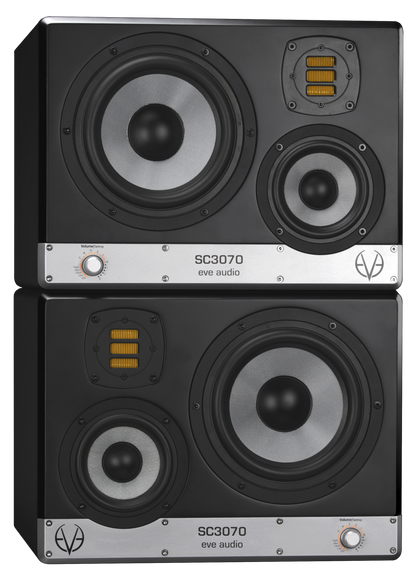

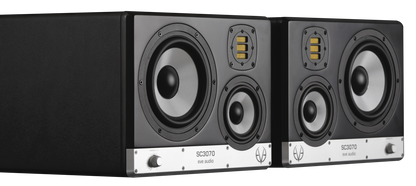

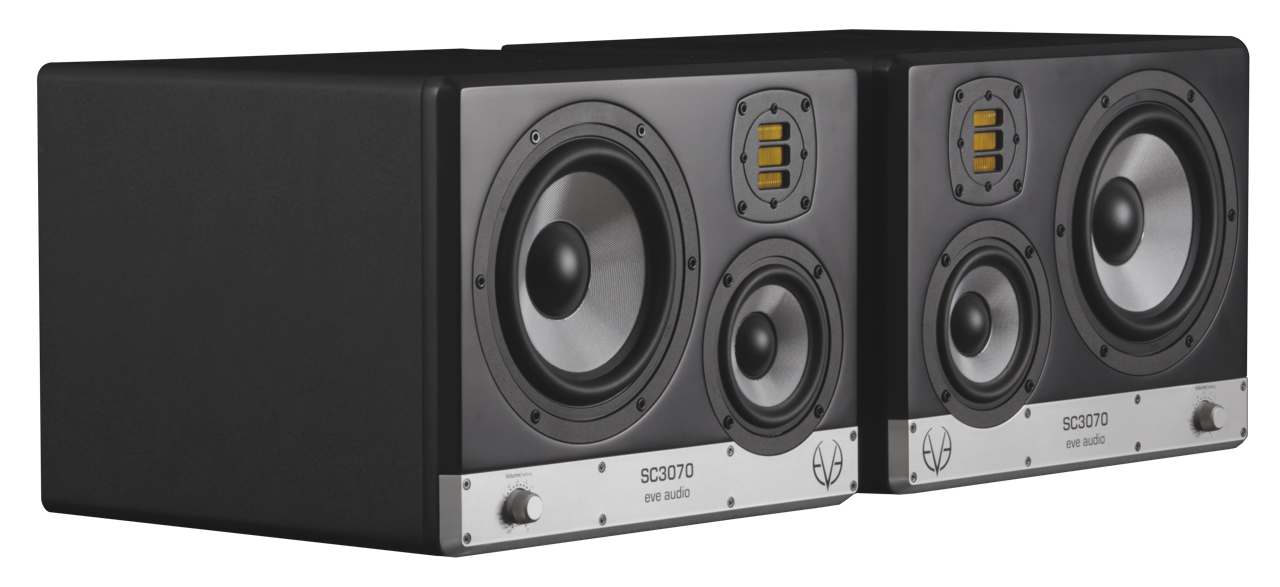

The SC3070 combines advanced driver technology and compact design, making it the perfect monitor for small-to-medium control rooms where space-saving solutions must still deliver full-range accuracy
Designed for those who need full-range monitoring performance in environments with limited space.

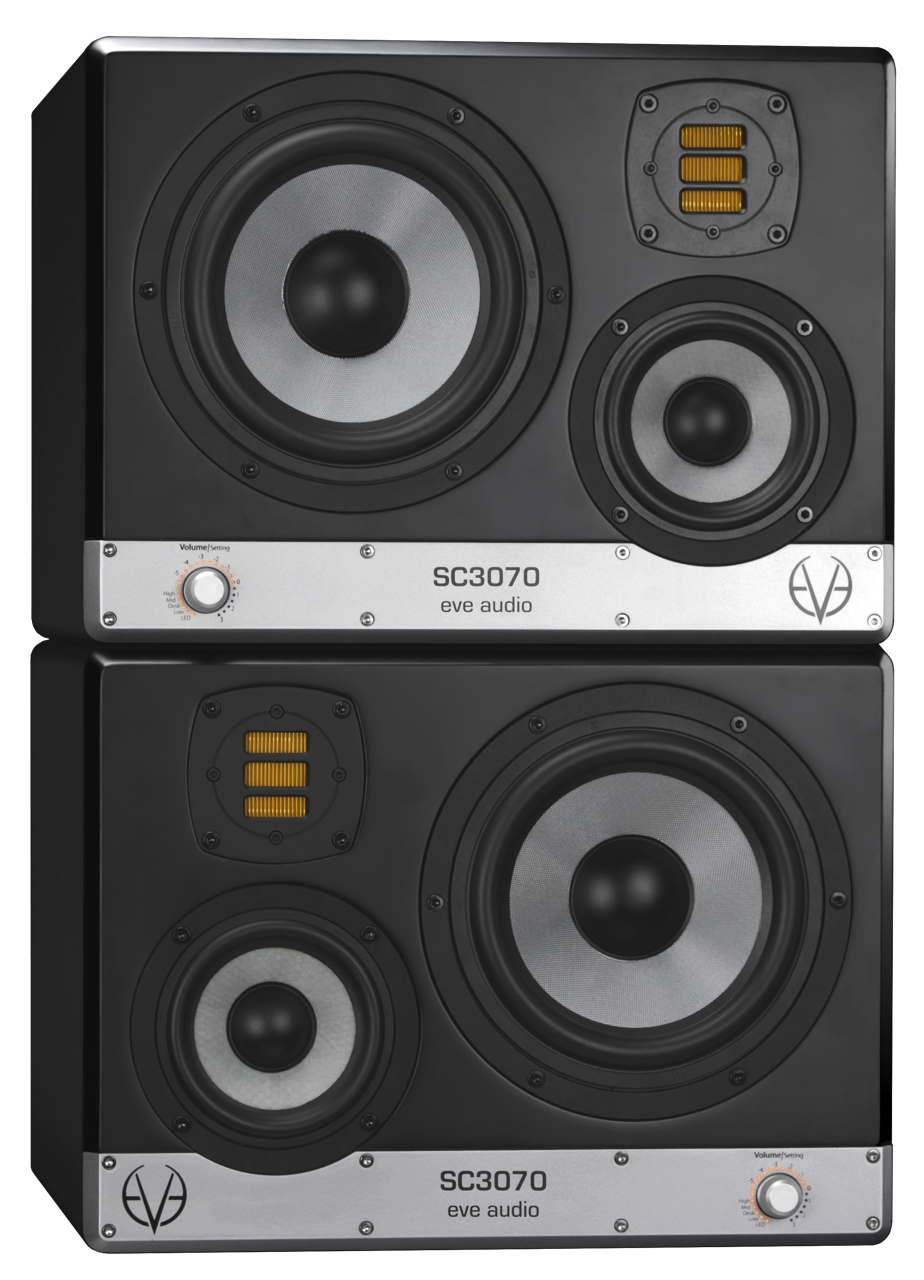

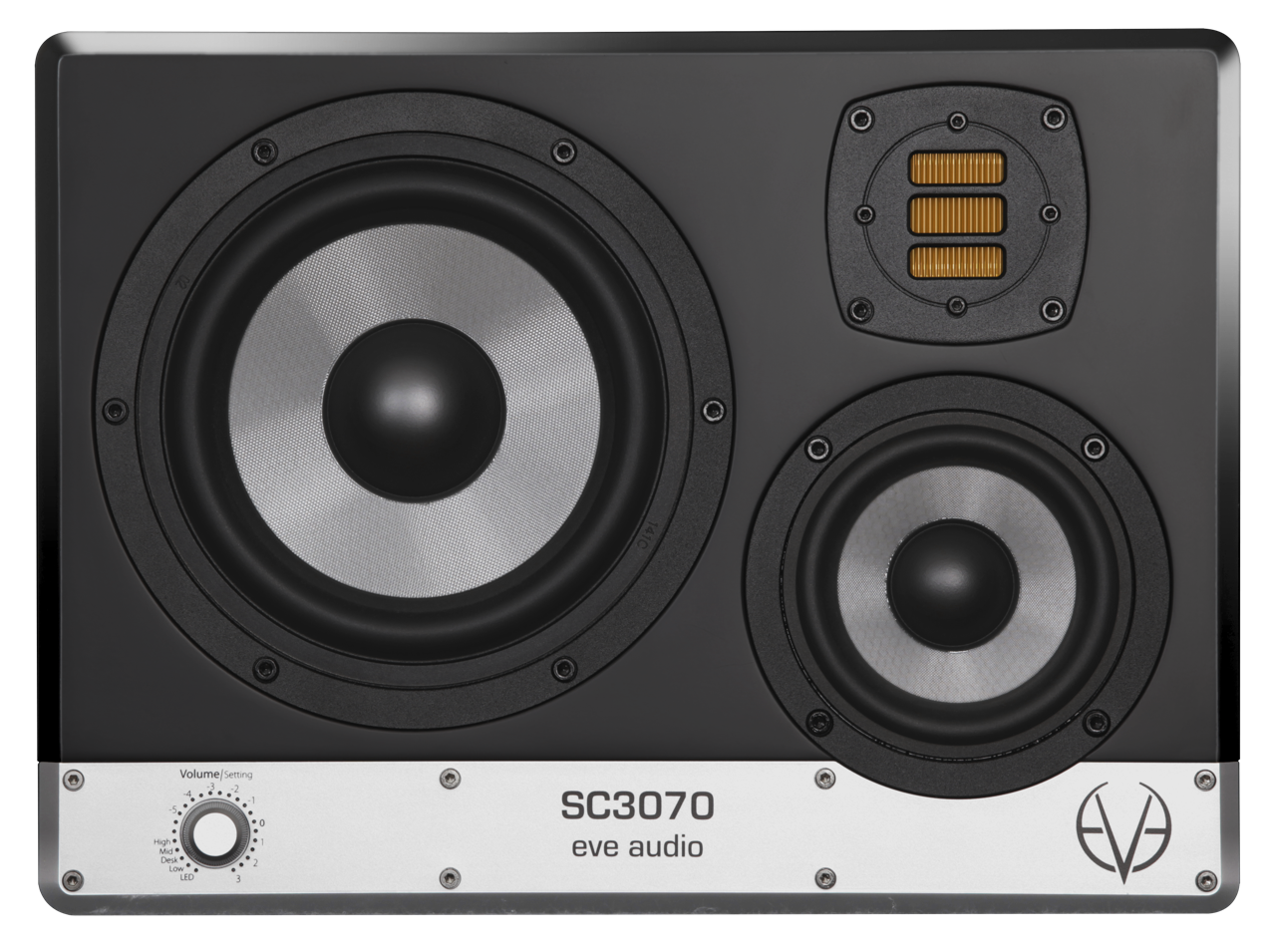

It features a 6.5" SilverCone woofer for extended low-end accuracy, a dedicated 4" midrange driver with a low-mass diaphragm for exceptional mid clarity, and the high-definition RS3 Air Motion Transformer for precise and detailed high-frequency reproduction.
This unique driver configuration ensures excellent separation between frequency bands, resulting in an open, focused soundstage and highly accurate translation across all types of content.
The SC3070’s high-resolution DSP offers full control over volume, EQ filters, desk compensation, and system configuration, easily accessible via the SMART-knob on the front panel. A built-in limiter and soft-start circuitry provide additional system protection and reliability.
Powered by three independent Class-D amplifiers (185 W woofer / 100 W midrange / 50 W tweeter), the SC3070 delivers a maximum SPL of 110 dB per pair—more than enough for demanding mixing, mastering, and immersive workflows.
Its compact, acoustically optimized cabinet with low-diffraction design supports wide dispersion and consistent response, making it an ideal choice for midfield applications, immersive installations, or any studio where space is at a premium but sonic performance cannot be compromised.
Driver Configuration: Active 3‑way monitor with 6.5″ woofer, 4″ midrange driver, and AMT RS3 tweeter
Crossover Frequencies: 320 Hz / 2,800 Hz
Amplification: Class‑D amps — 185 W for bass woofer, 100 W for mid-woofer and 50 W for tweeter (total ~335 W per speaker)

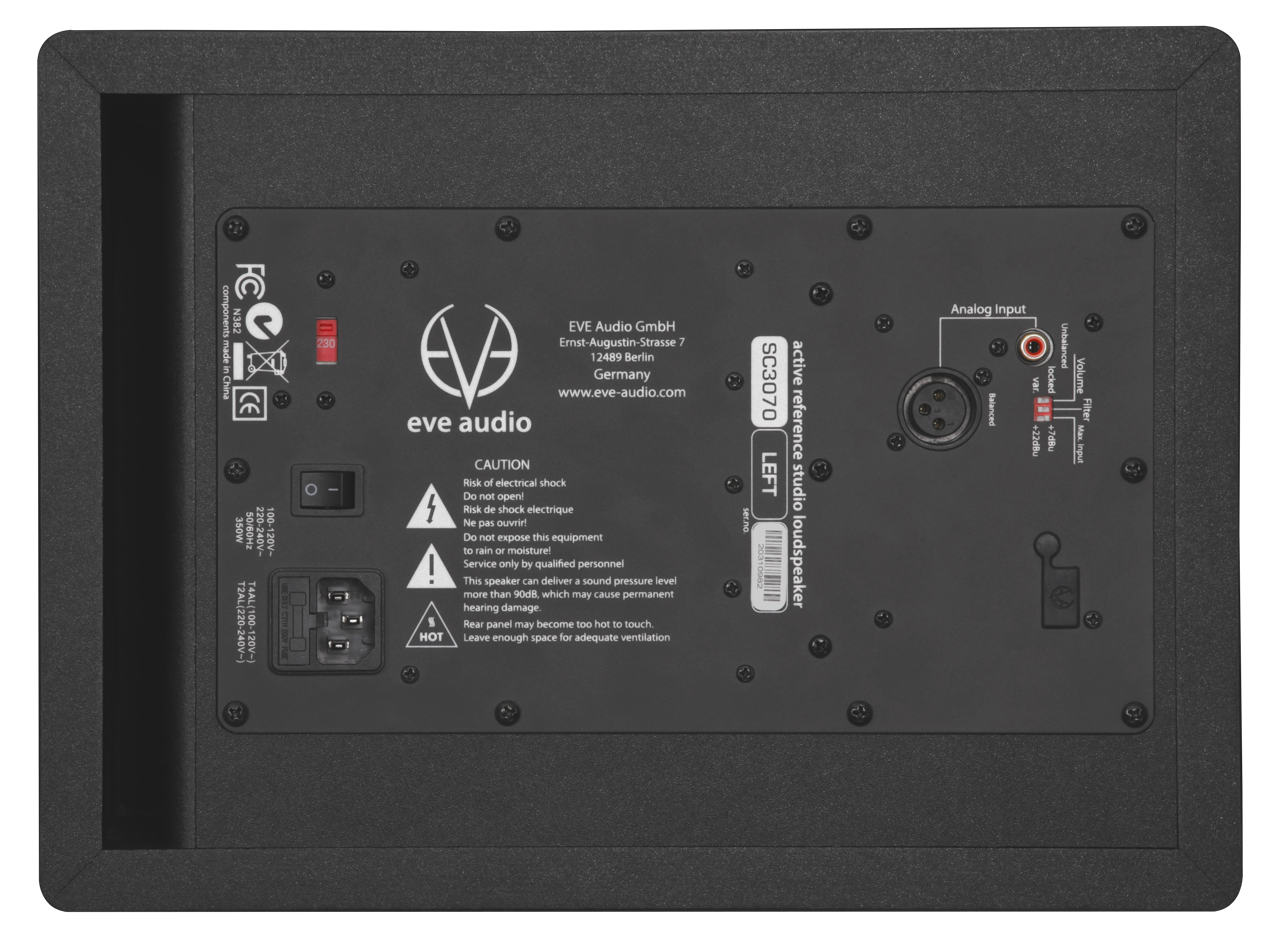

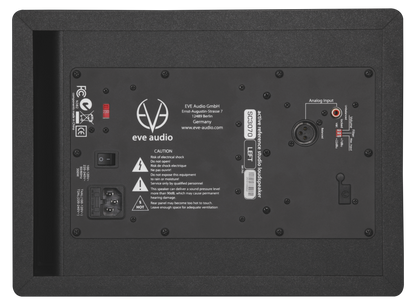

Inputs: Balanced XLR and unbalanced RCA; input impedance ~10 kΩ
DSP & SMART-knob Controls: Front-panel high-resolution DSP with SMART-knob for volume, High-shelf, Mid EQ, Desk filter, Low-shelf, and LED brightness; settings can be locked via DIP switches; includes a high-quality Burr-Brown A/D converter; soft fade-in on power-up
Limiter Protection: Built-in limiter protects drivers from overload
Power Consumption: Standby power under 1 W; full operational draw up to ~220 VA
Cabinet & Port Design: Rear bass-reflex port engineered to minimize airflow noise and distortion; compact and acoustically optimized enclosure
Weight: 9.8 kg (21.6 lb)
Product Dimensions (W x H xD): 340 x 250 x 310 mm / 13.4 x 9.8 x 12.2 inches
