Elysia | 994060070

Elysia xpector

Elysia xpector

Regular price €1.099,00
Regular price Sale price €1.099,00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Usually ships within 3-5 business days
Quantity

xpector is elysia's dual headphone amplifier and monitor controller, built in a custom-backplate elysia qube for the connectivity a dual-headphone workflow needs. Independent engineer and artist sides each get their own Direct/DAW mix controllers, and the artist side adds a dedicated tone EQ. Balanced XLR outputs let xpector double as a compact monitor controller for powered speakers.

xpector is a qube-exclusive product with no 19-inch rack or 500 Series equivalent - its custom back panel with 12 audio connections needs more I/O than the 500 Series format can offer.

View full details
>>

Product Description

Mix and Monitor. Everywhere.

xpector is a dual headphone amplifier built specifically for tracking sessions: the engineer and the artist each get an independent stereo mix of Direct and DAW signals with their own mix and level controllers, so either side can be adjusted instantly without touching the other. The artist side adds a dedicated high/low shelving EQ to tune the monitoring signal to taste.

An intuitive rotary switch on the engineer side flips between stereo, mono, side, left and right monitoring modes for checking mix compatibility, and balanced XLR outputs let xpector double as a monitor controller for powered speakers - with a Trim control to balance headphone and speaker volume. Loop outputs allow multiple xpector units to be cascaded for individual musician mixes in larger sessions.

>>

Features & Specs

xpector Features & Specs

  • Dual headphone amplifier with independent engineer and artist sides
  • Two stereo inputs (Direct, DAW) with independent mix controllers per side
  • Artist-side high/low shelving tone EQ
  • Monitoring modes: stereo, mono, side, left, right (engineer side)
  • Balanced XLR outputs for powered speakers, with Trim control
  • Loop outputs for cascading multiple xpector units
  • Mirrored front and rear headphone outputs

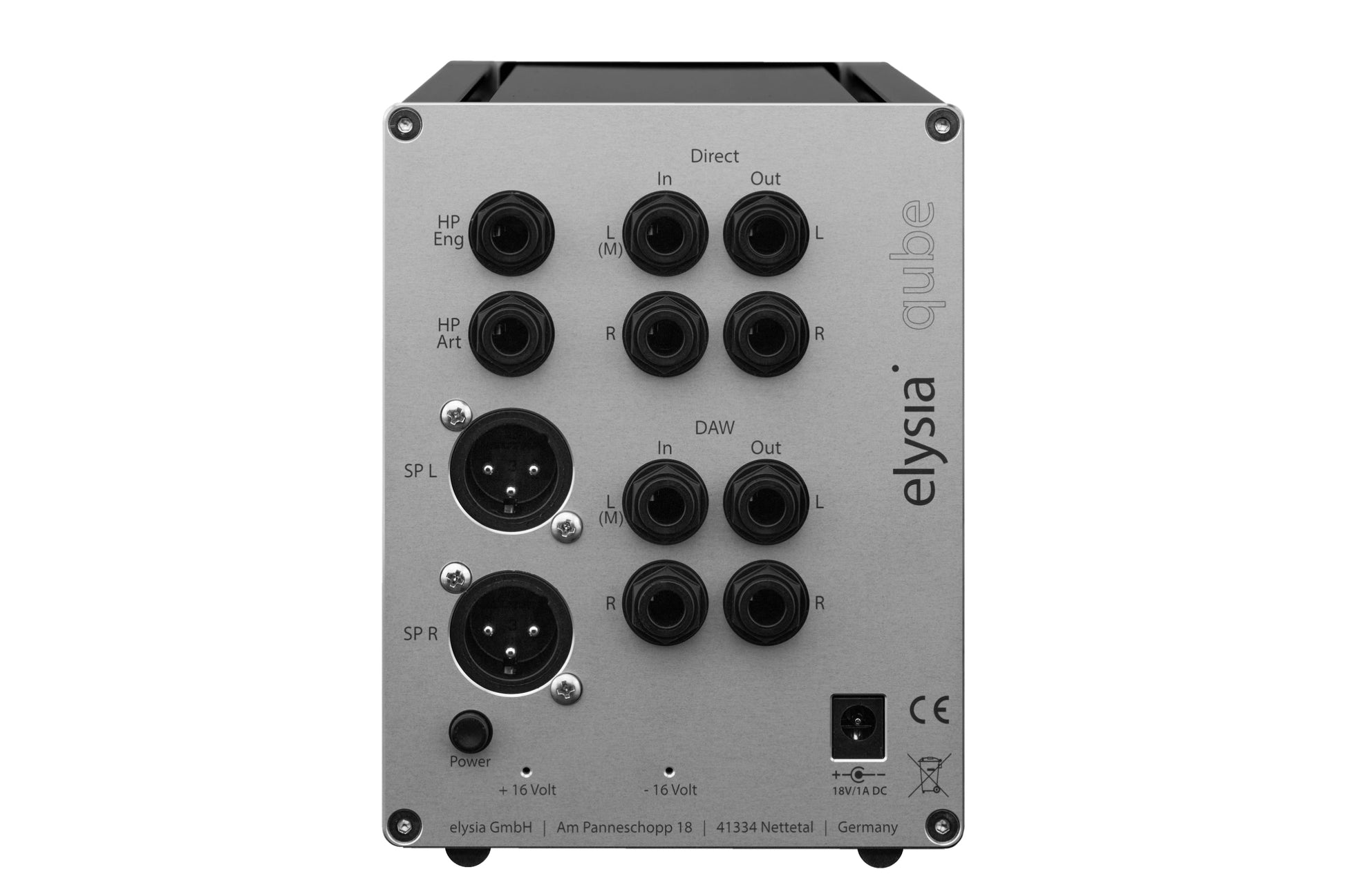

  • Custom qube backplate with 12 audio connections
  • Frequency response: <10 Hz - 400 kHz (-3.0 dB)
  • Max output power: 2x 150 mW RMS @ 22 Ohm and @ 600 Ohm
  • Dimensions (W x H x D, incl. knobs): 104 x 137 x 212 mm / 4.1" x 5.39" x 8.4"
  • Weight: 1.46 kg / 3.17 lbs
  • Power consumption: 9 Watts
> > >
