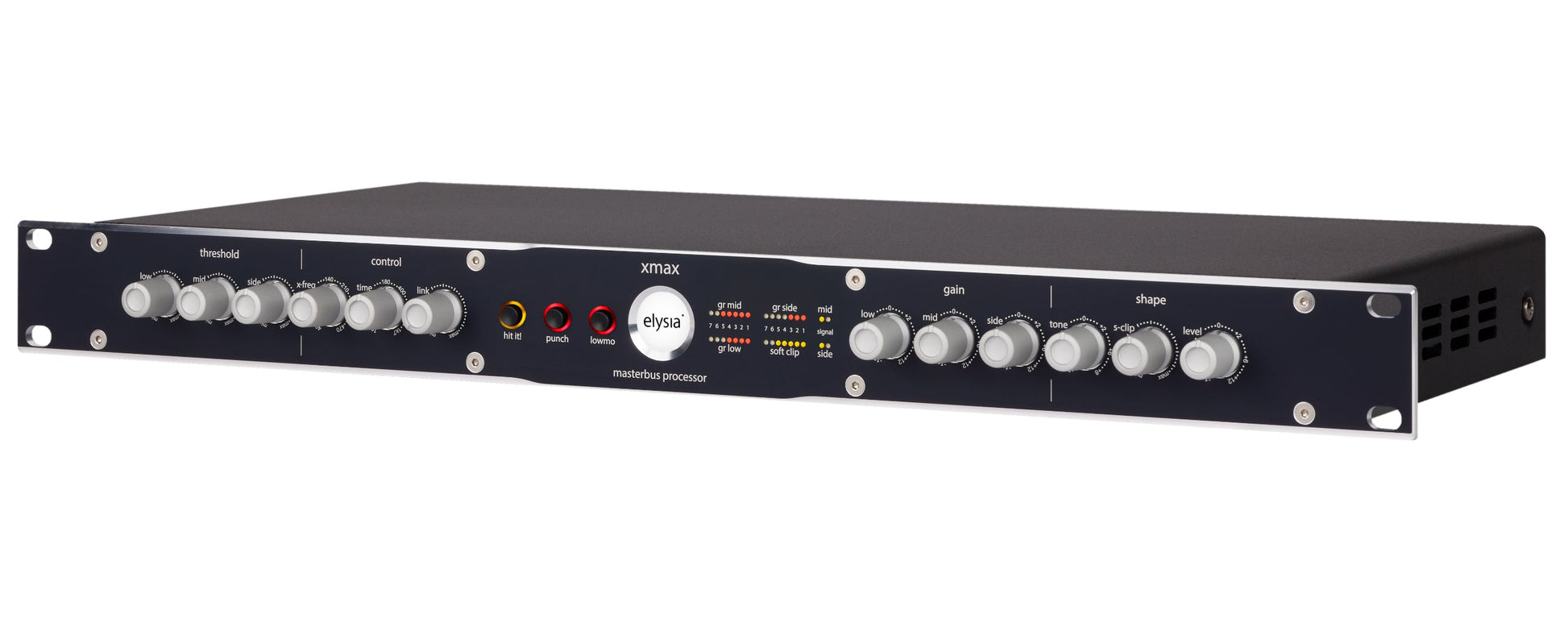

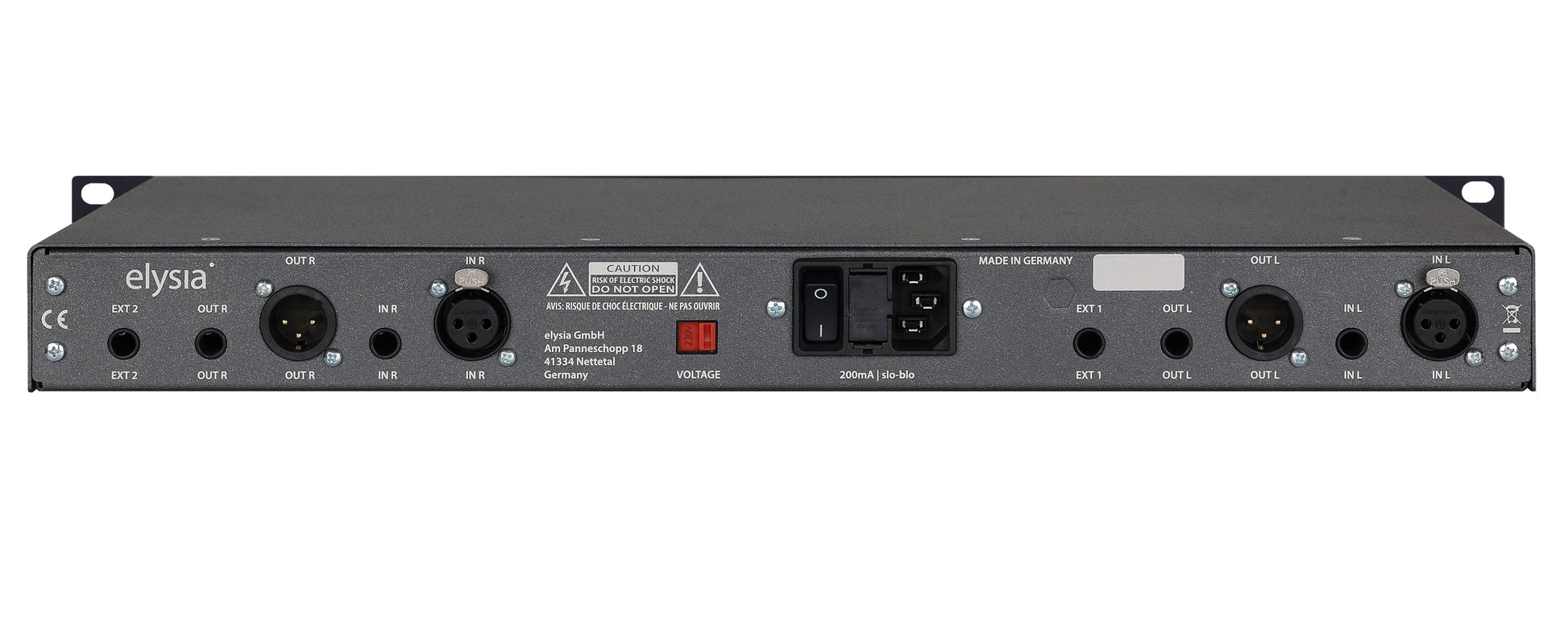

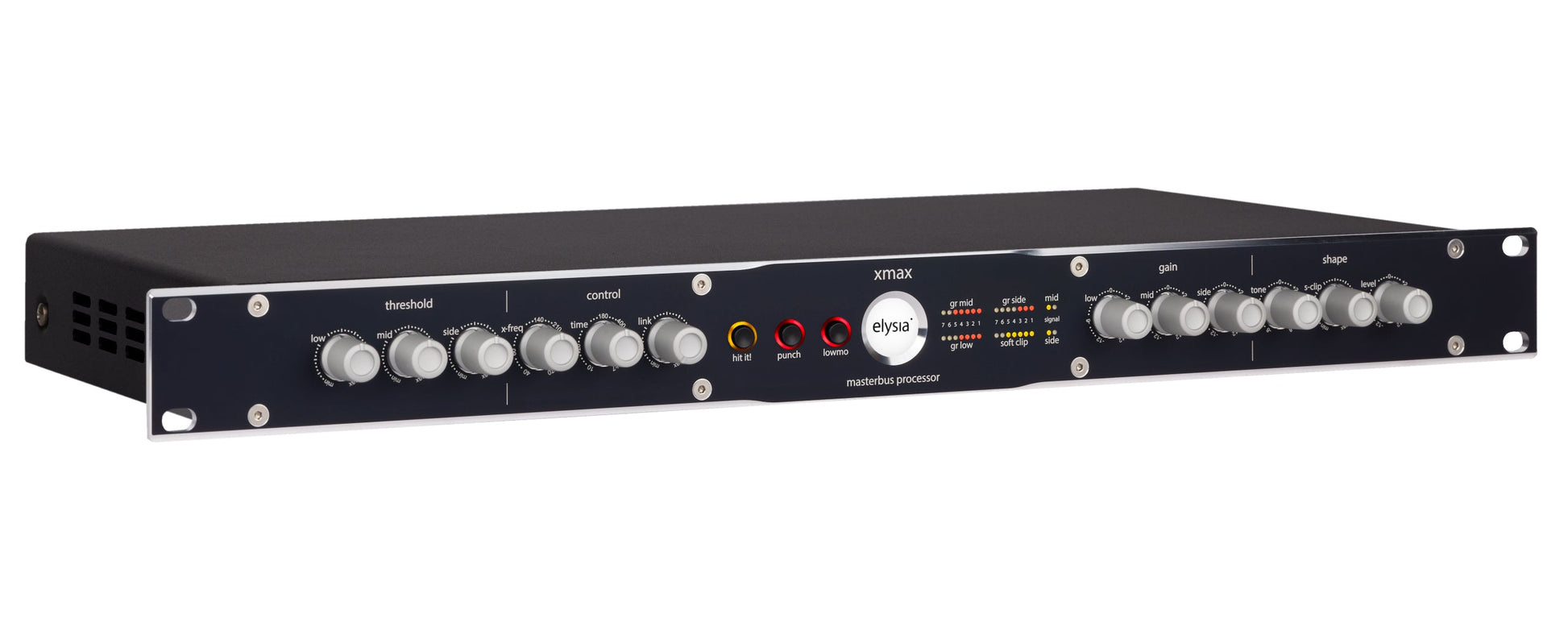

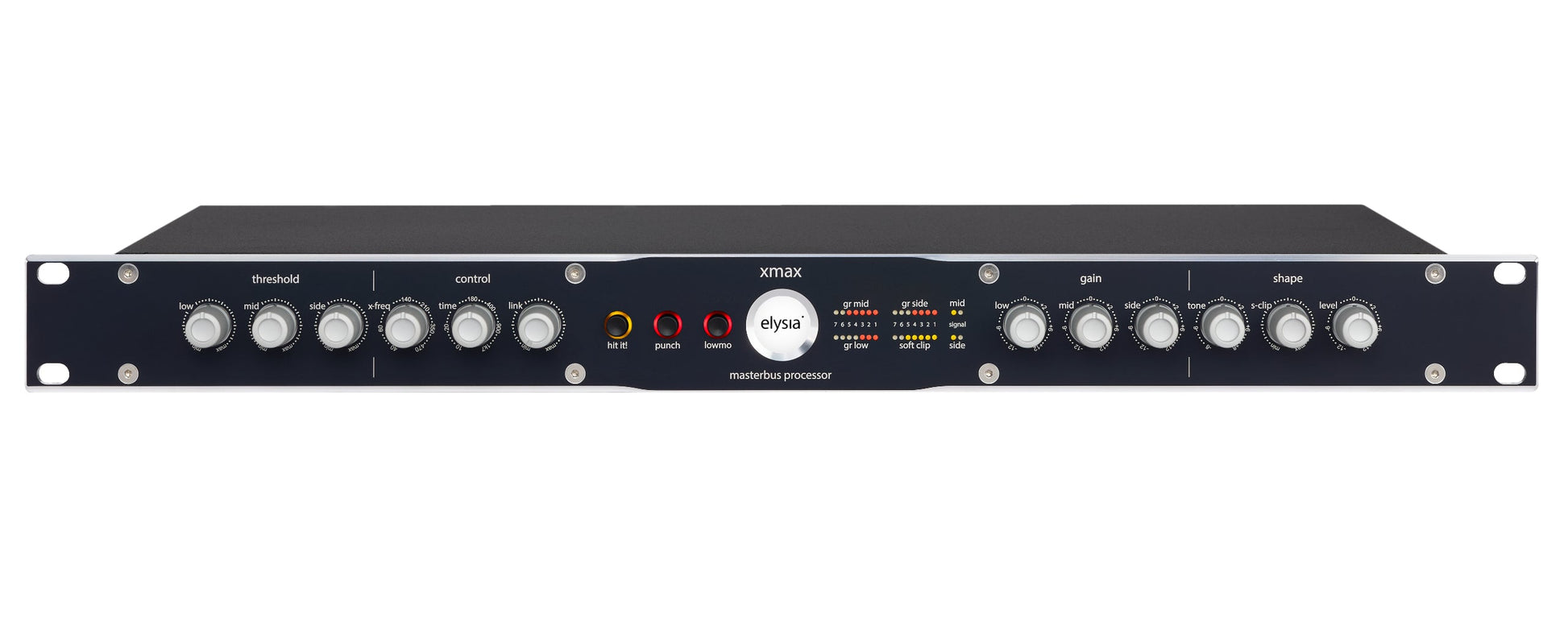

Elysia xmax 19" Rack

dynamic. transparent. exciting.

xmax encodes an incoming stereo signal into Mid and Side, and further splits the Mid signal into Low and Mid bands, giving you three independent compressors in a single masterbus processor. A fixed 10 ms attack preserves natural transients, with Auto Fast automatically shortening attack time when gain reduction exceeds 8 dB.

An adjustable crossover between the low and mid bands, a VariLink function for blending independent-band to fully-linked compressor behavior, and a Tone control for adding air round out the dynamics. A Soft Clip Limiter derived from the alpha compressor drives the signal harder without clipping downstream A/D converters.

xmax 19" Rack Features & Specs

• Masterbus processor with internal Mid/Side multiband compression
• Three independent compressors: low, mid and side band
• Adjustable crossover frequency between low and mid band (40-470 Hz)
• VariLink: from unlinked to fully linked band thresholds
• Global Release control with Auto Fast on strong gain reduction
• Punch Mode: switchable 1:1.45 / 1:2.55 compression ratio
• Tone control: high-shelf filter, -8 to +8 dB
• Soft Clip Limiter derived from the alpha compressor
• Analog metering for all three bands plus the limiter
• Frequency response: <10 Hz - 180 kHz (-3 dB)
• Dynamic range: 112 dB
• Dimensions (W x H x D, incl. knobs): 483 x 44.45 x 232 mm / 19" x 1.75" x 9.2"
• Weight: 1.76 kg / 3.88 lbs
• Power consumption: 12 Watts

DOCUMENTATION:

• Rack Series Manual
• Recall Sheet Rack Series
