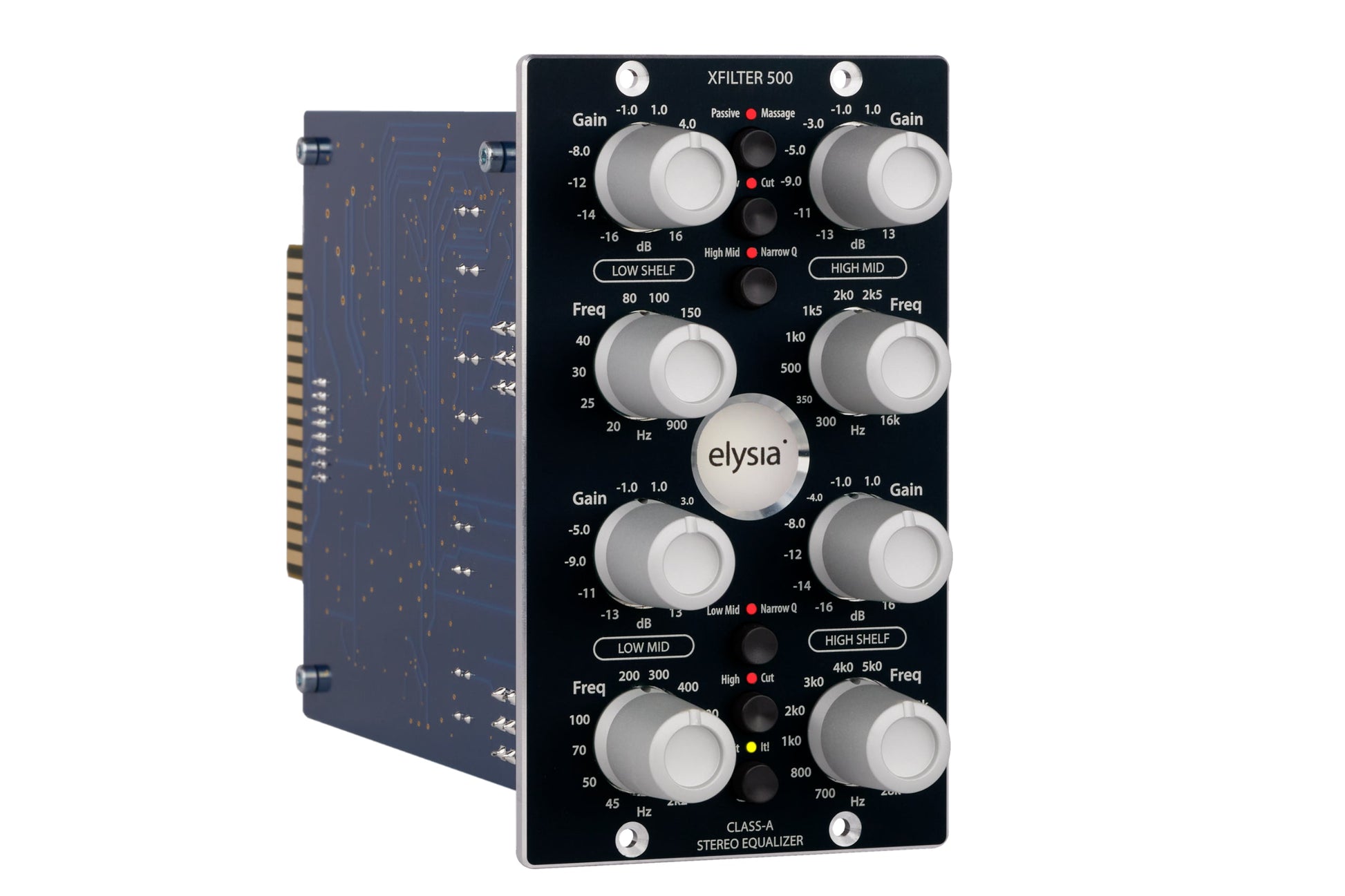

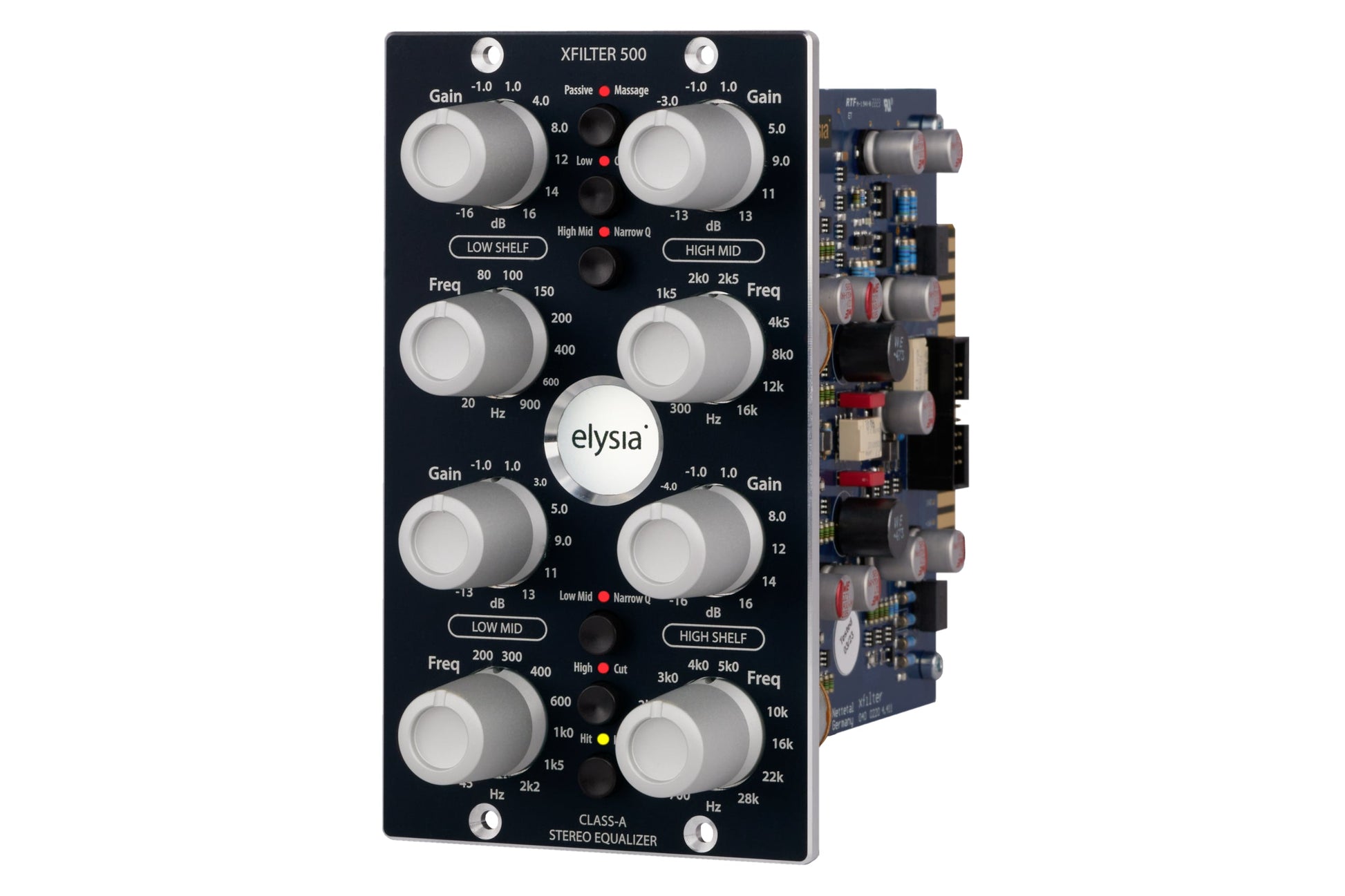

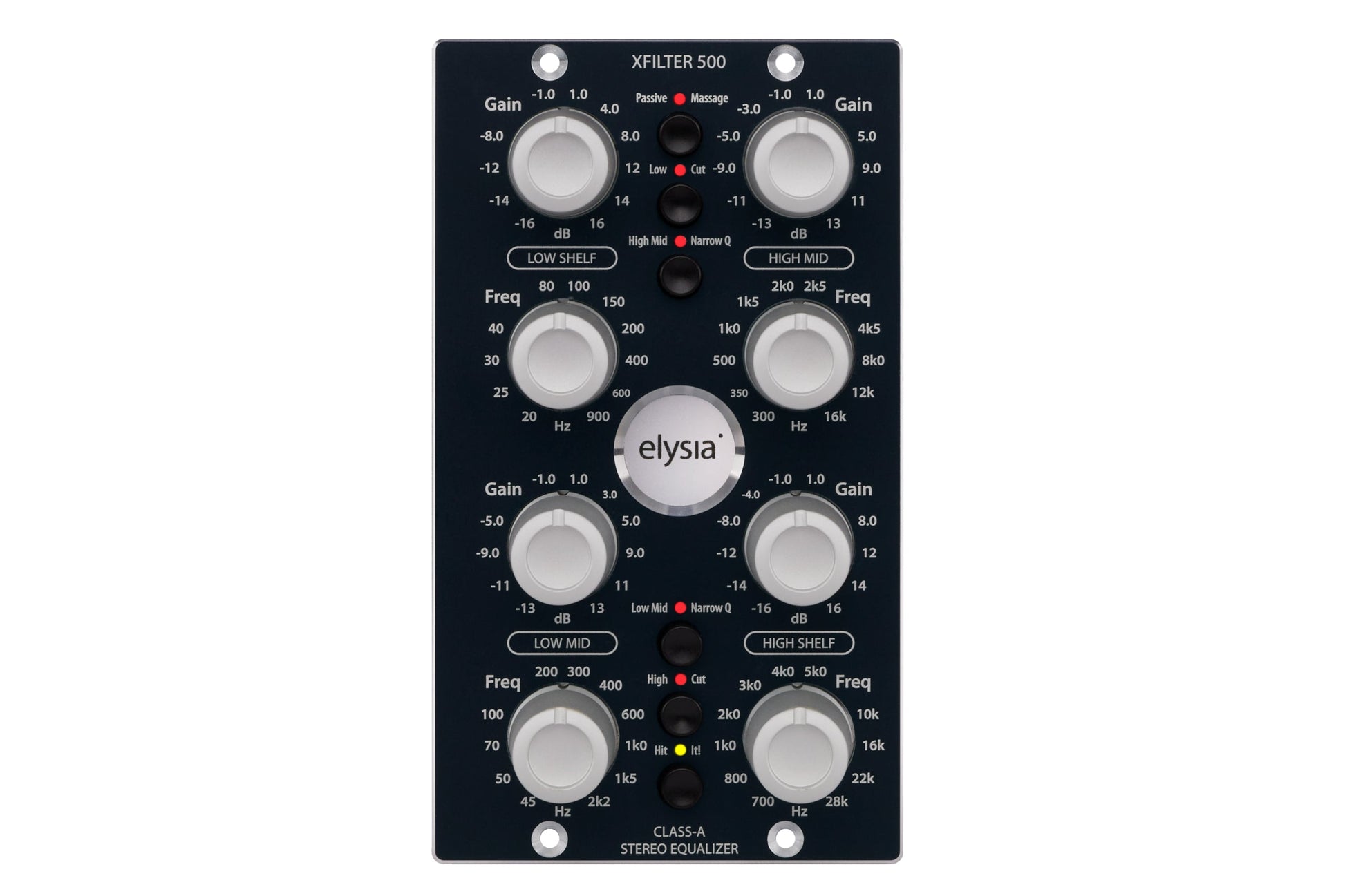

Elysia xfilter 500

precise. open. versatile.

xfilter 500 is a true stereo-linked 4-band equalizer, a rarity among analog EQs, now in a 2-slot 500 Series module. Its two channels are matched using computer-selected dual and quad-layer potentiometers plus low-tolerance capacitors, so both channels behave identically instead of drifting apart the way ordinary linked-mono designs do.

The outer bands double as switchable resonant high- and low-cut filters, the two parametric mid bands offer a choice of wide (Q 0.5) or narrow (Q 1.0) bandwidth, and a switchable passive 'Massage' filter polishes the top end with a gentle inductor-based resonance around 12 kHz.

xfilter 500 Features & Specs

• 4-band true stereo-linked equalizer for recording, mixing and mastering, 2-slot 500 Series module
• Switchable resonant high- and low-cut filters on the outer bands (12 dB/octave)
• Switchable Q (0.5/1.0) on the two parametric mid bands
• Passive Massage: switchable passive high-band filter for extra top-end sheen
• Computer-matched, low-tolerance dual/quad-layer potentiometers, 41 steps
• 4-layer PCB with dedicated ground shield layer for low noise
• Frequency response: <10 Hz - 400 kHz (-3.0 dB)
• Dynamic range: 112 dB
• Power consumption: 210 mA
