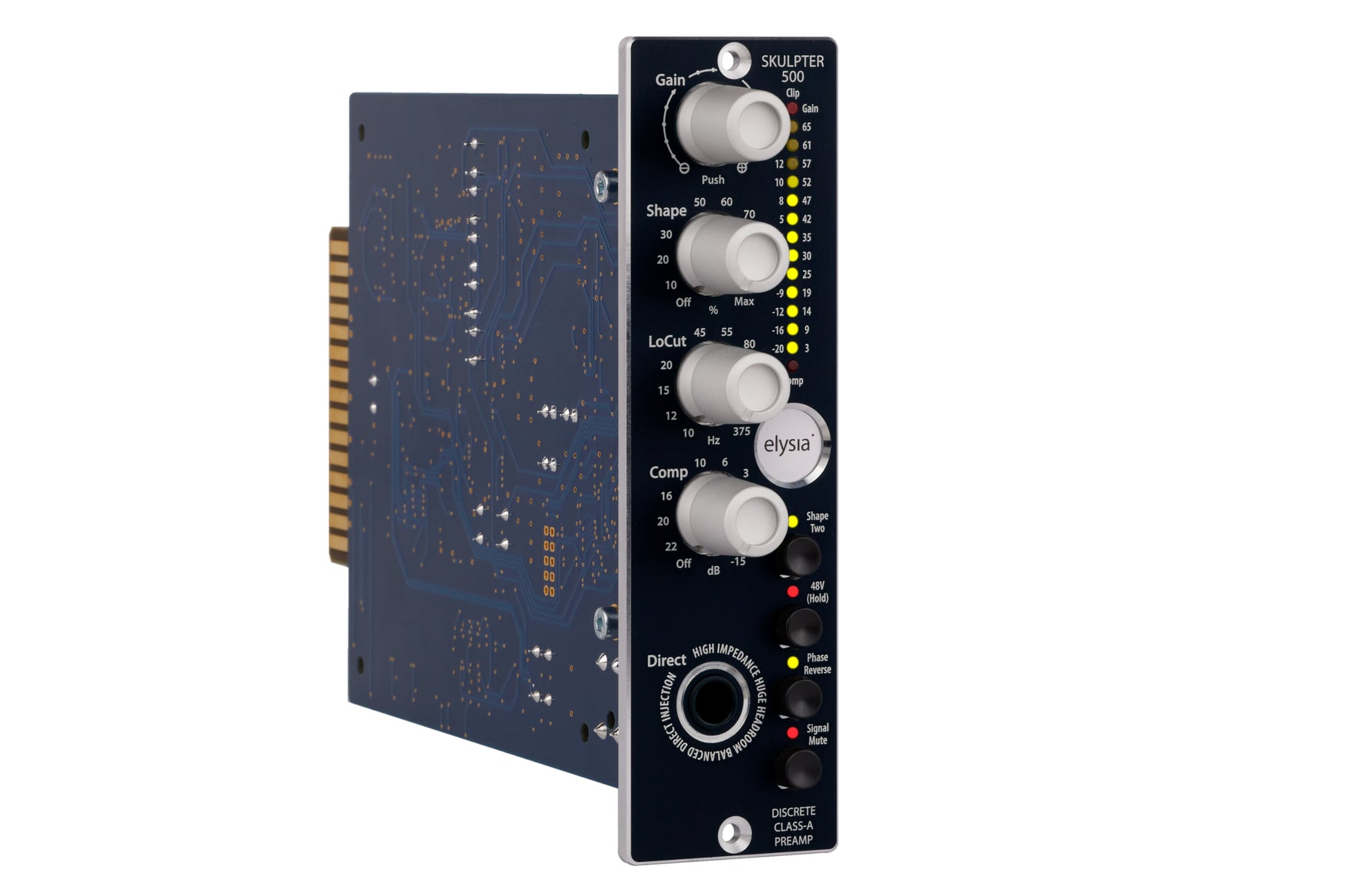

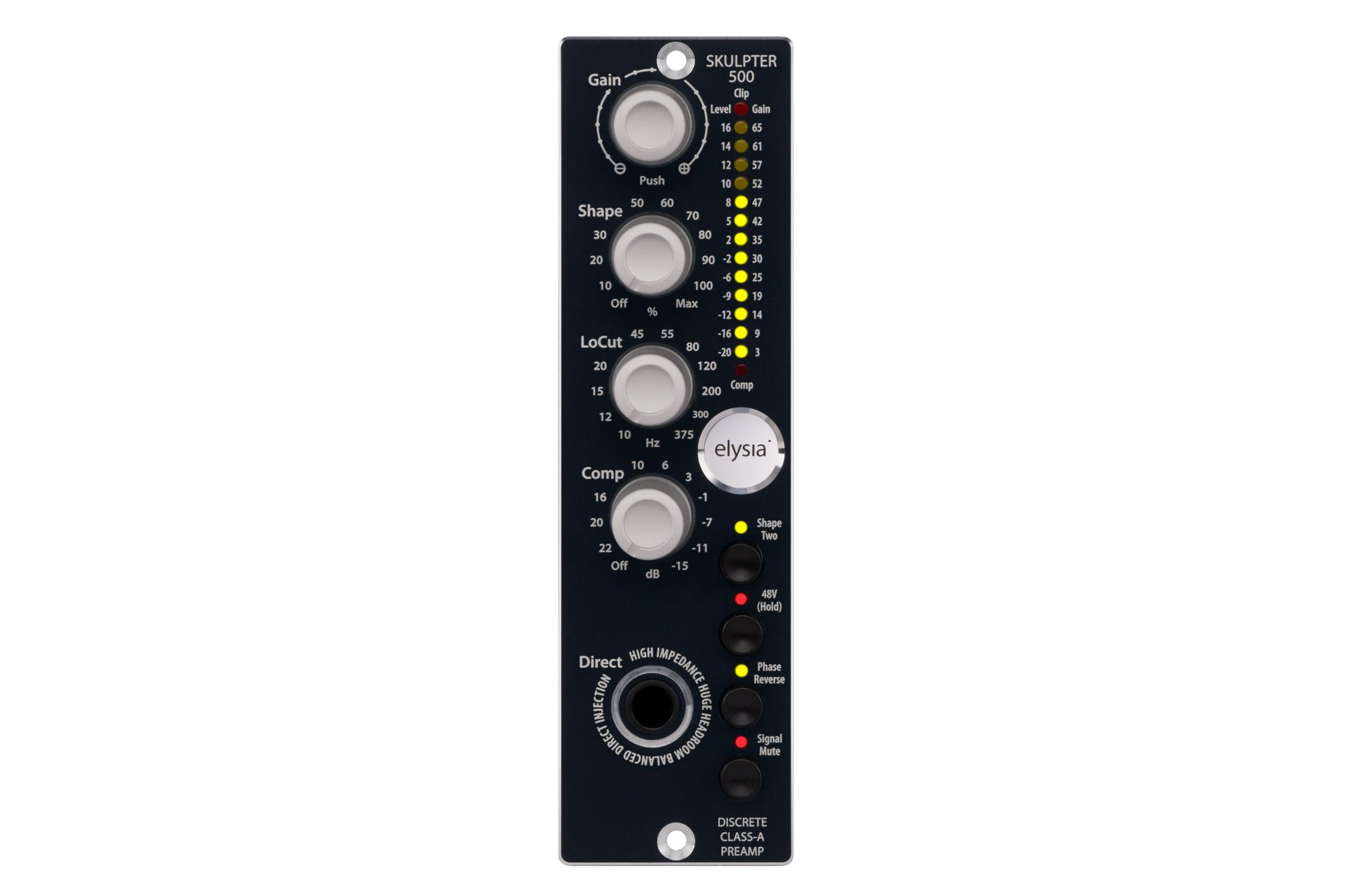

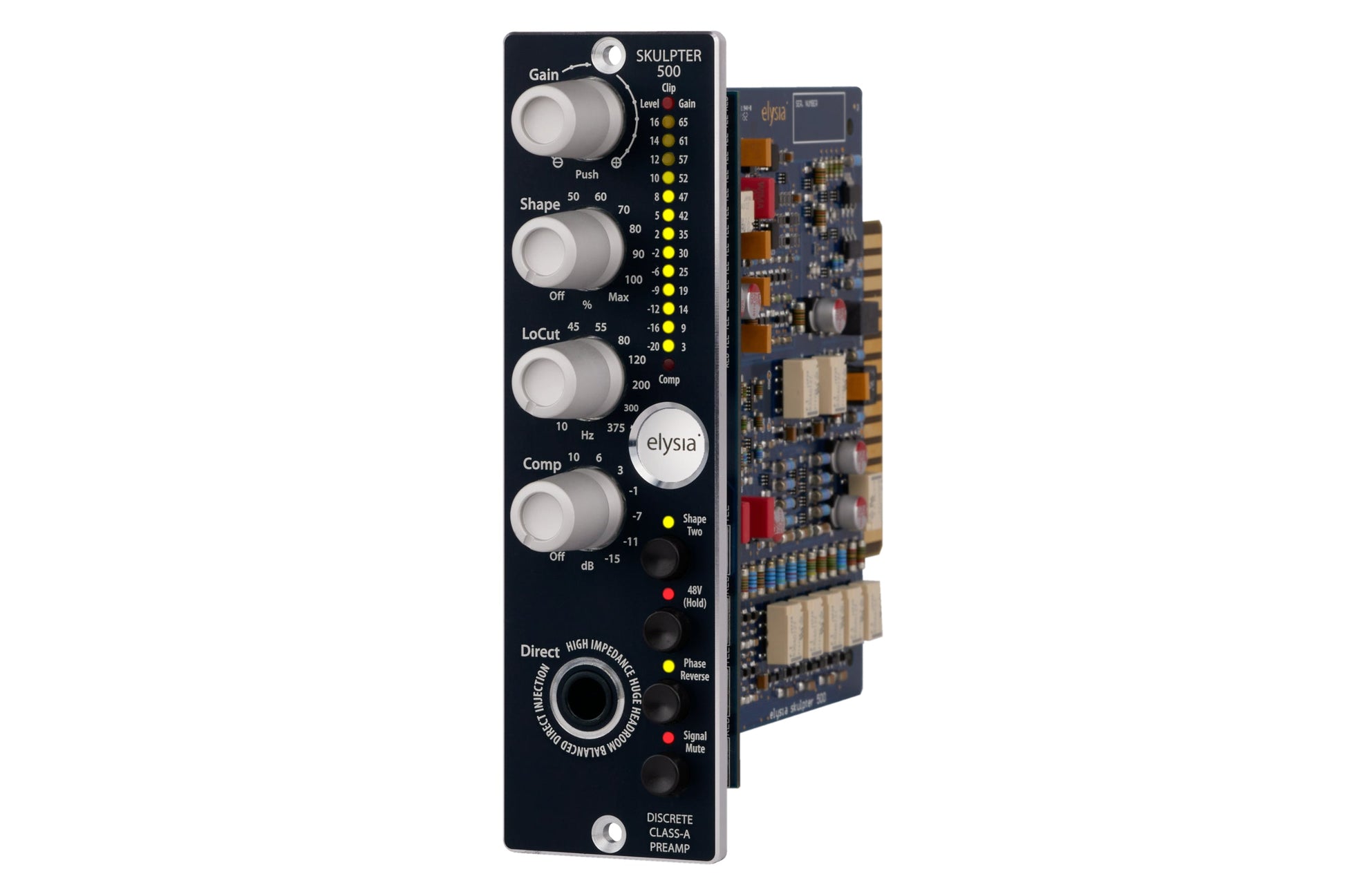

Elysia skulpter 500

natural. versatile. rich.

skulpter is elysia's high-end DC-coupled Class-A preamp, with audiophile relay-switched gain staging offering 40 gain values across a 3-65 dB range in 1.5/2 dB steps. Two independent Sound Shaper flavors add harmonic saturation tuned separately for instruments and for vocals, letting you fatten a signal or add soft, tube-like limiting depending on the source.

A variable low cut (10 Hz - 375 Hz, 12 dB/octave), an intelligent one-knob onboard compressor with Auto Fast, a balanced front-panel DI with 1 megohm input impedance, and onboard 48V phantom power make skulpter a complete recording front-end in a single 500 Series slot.

skulpter 500 Features & Specs

• Class-A high-end mic preamp, 500 Series format
• DC-coupled input, 40 gain values from 3 to 65 dB
• Dual Sound Shaper: separate saturation flavors for instruments and vocals
• Variable low cut, 10 Hz - 375 Hz, 12 dB/octave
• Onboard one-knob dynamics with Auto Fast
• Balanced DI input, 1 MOhm impedance, up to +19 dBu
• Onboard 48V phantom power
• Pure polarity reverse without extra circuitry in the signal path
• Multifunction 15-LED meter: clipping, compression, level and gain
• Frequency response: 10 Hz - 170 kHz (-3 dB)
• Power consumption: 90 mA

DOCUMENTATION:

• 500/qube Series Manual
• Recall Sheet 500/qube Series
