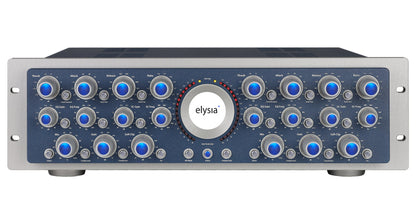

Elysia alpha compressor

The Analog Mastering Tool

Since its introduction in 2008, the elysia alpha compressor has become a modern classic on mastering benches around the world. Every unit is hand-built and individually tested at elysia's headquarters in Nettetal, Germany, using elysia's fully discrete, temperature-compensated Passive Current Attenuator (PCA) circuit for gain reduction.

Switchable feed-forward and feedback topologies let engineers dial in anything from gentle, glue-like compression to hard limiting, while true stereo and internal Mid/Side processing give precise control over the width and focus of a master. A built-in parallel compression blend, a sidechain filter and a Tilt EQ for fine tonal shaping round out a feature set built specifically for the demands of mastering.

alpha compressor Features & Specs

• Feed-forward or feedback compression topology, switchable
• True stereo and internal Mid/Side (M/S) processing
• Built-in parallel compression with dedicated Mix control
• Sidechain filter (High Pass/Low Pass) for frequency-selective compression
• Tilt EQ (Audio Filter) for tonal balance shaping
• Soft Clip Limiter to protect downstream A/D converters
• Auto Fast attack for transparent handling of fast transients
• T16 Heater thermal stabilization for 16 discrete transistors
• Matched, 21-step conductive plastic potentiometers throughout
• Frequency response: <10 Hz - 200 kHz (-0.5 dB)
• Dynamic range: up to 122 dB (Stereo Mode)
• Dimensions (W x H x D, incl. knobs): 483 x 133 x 405 mm / 19" x 5.3" x 16"
• Weight: 16 kg / 35 lbs
• Power consumption: 85 Watts

DOCUMENTATION:

• alpha compressor Manual
• alpha compressor Recall Sheet
