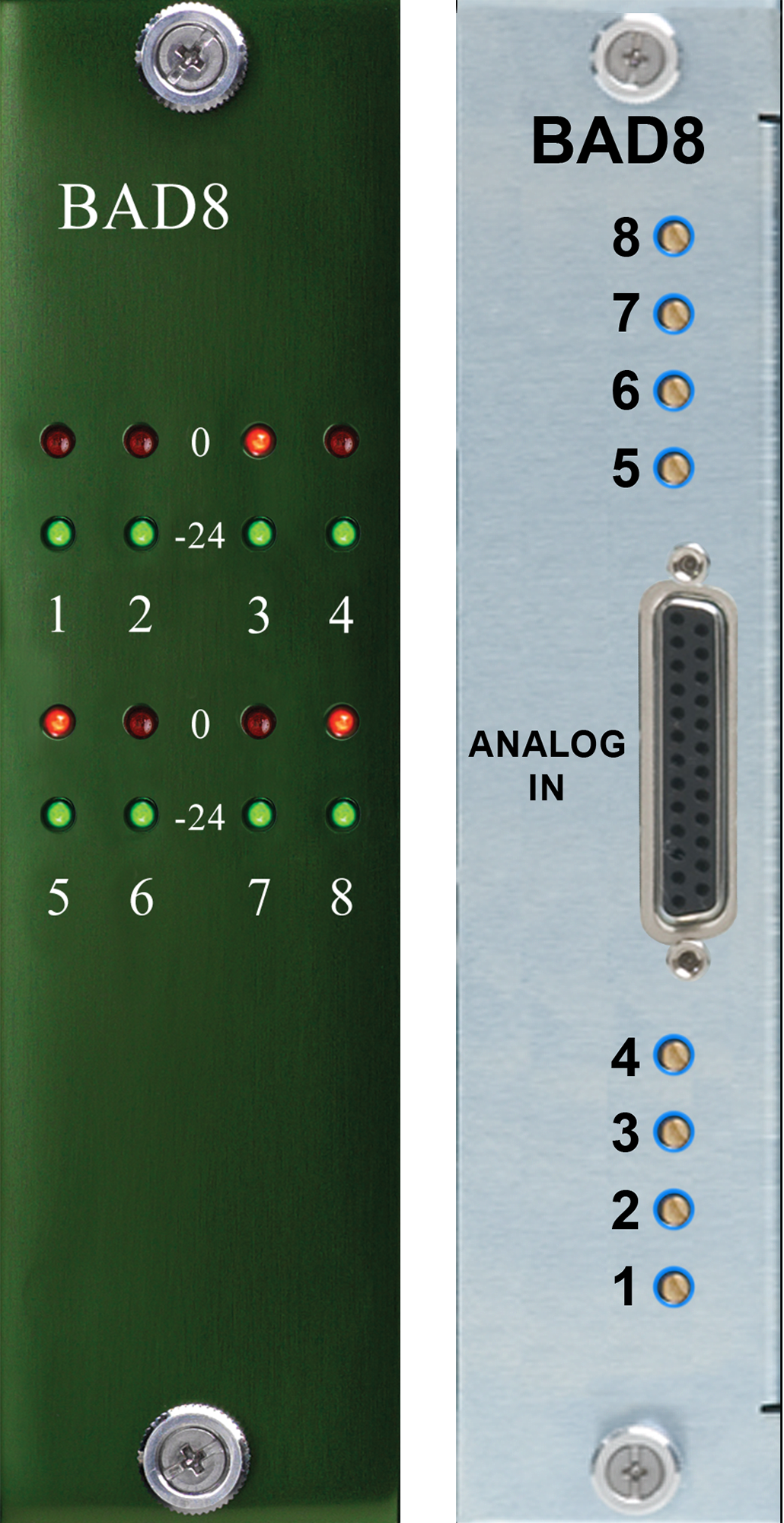

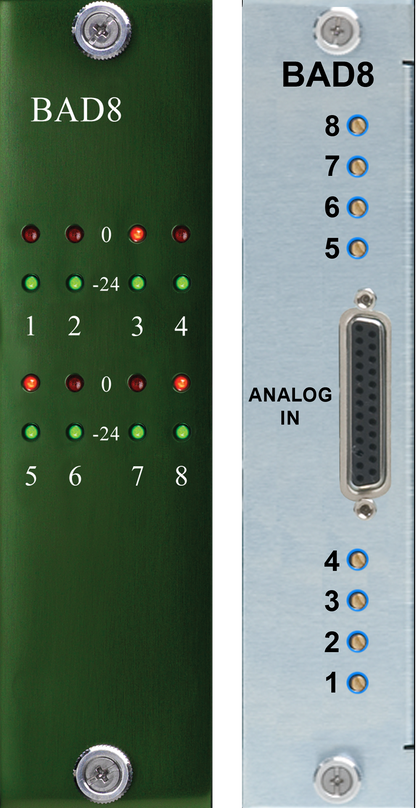

• Burl Audio BAD8 front and back

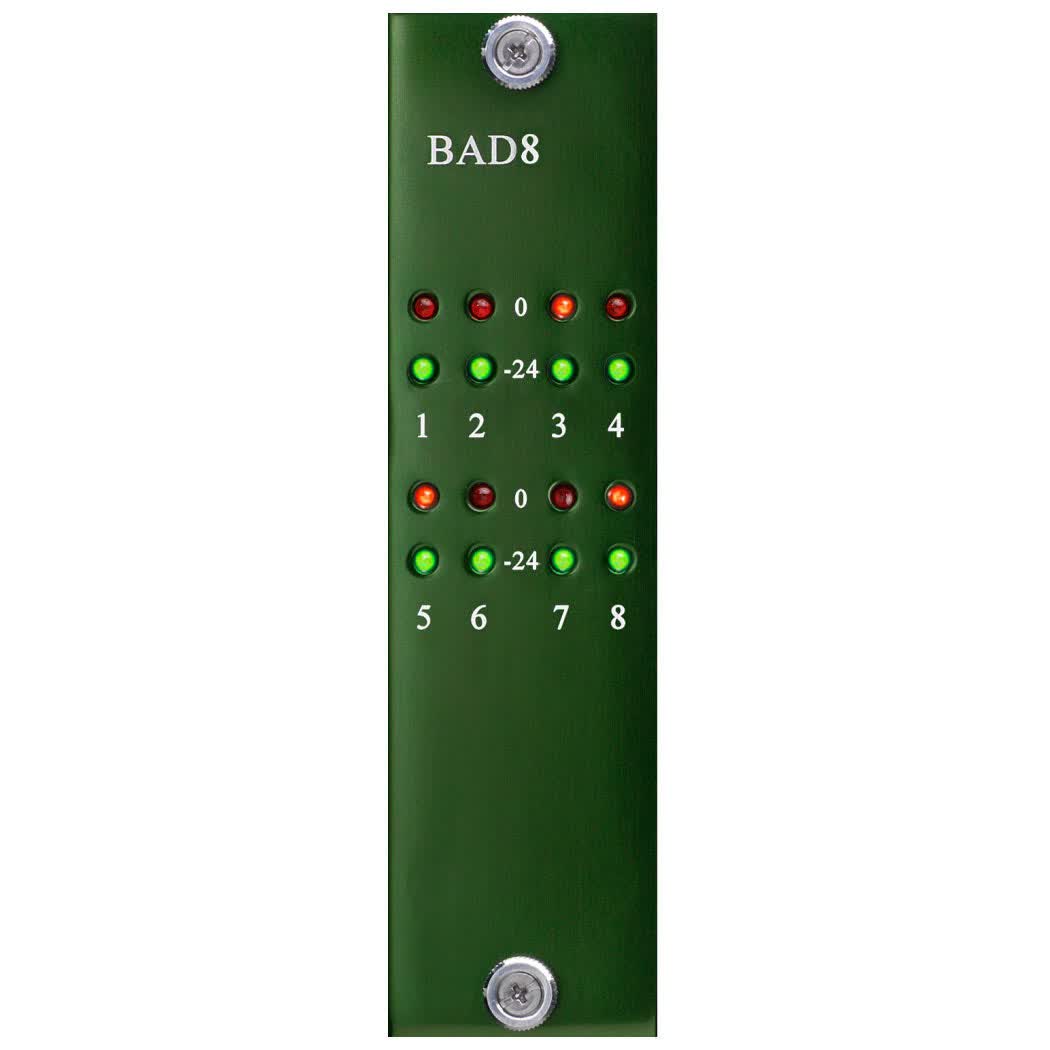

  • Burl Audio BAD8 A/D Converter Card Frontplatte

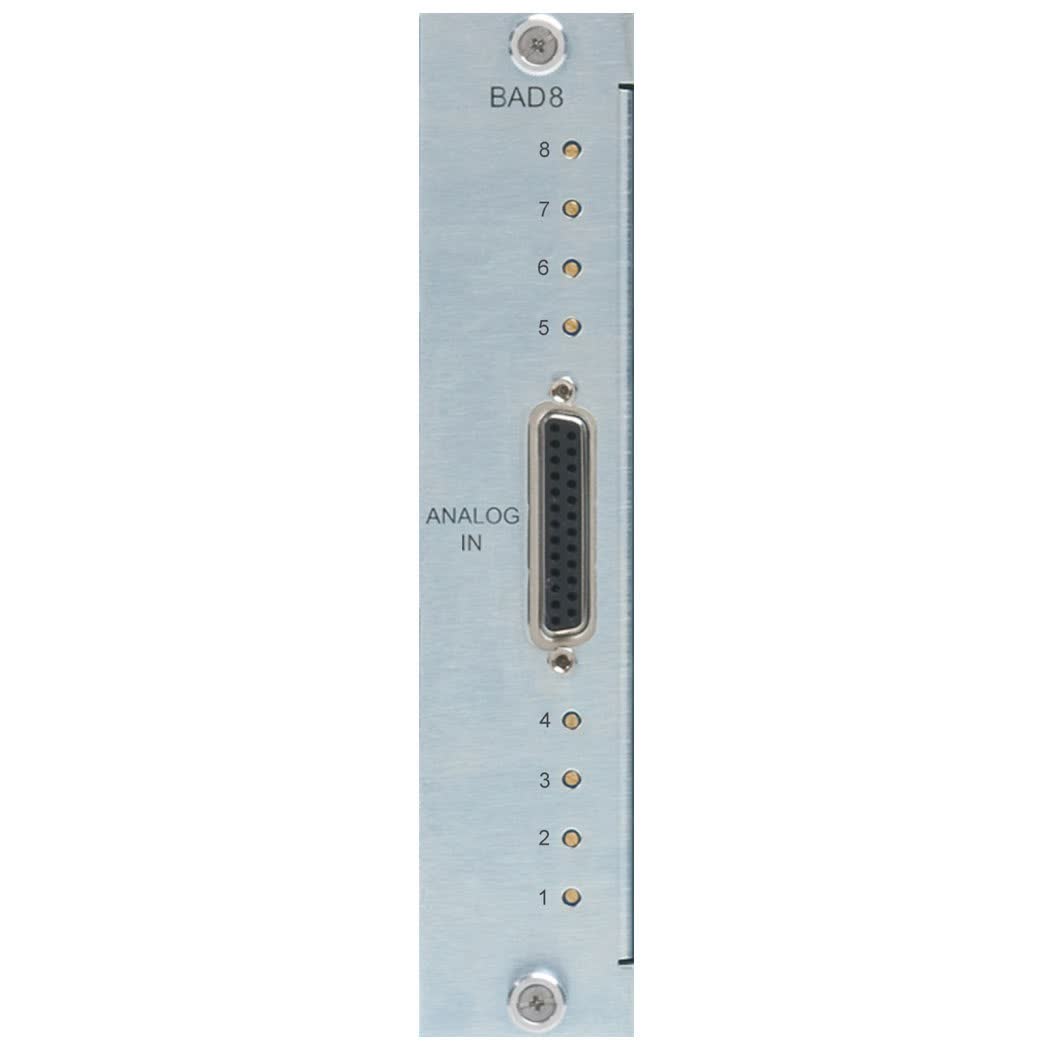

  • Burl Audio BAD8 A/D Converter Card Detail
1 4

Burl Audio | B80-BAD8

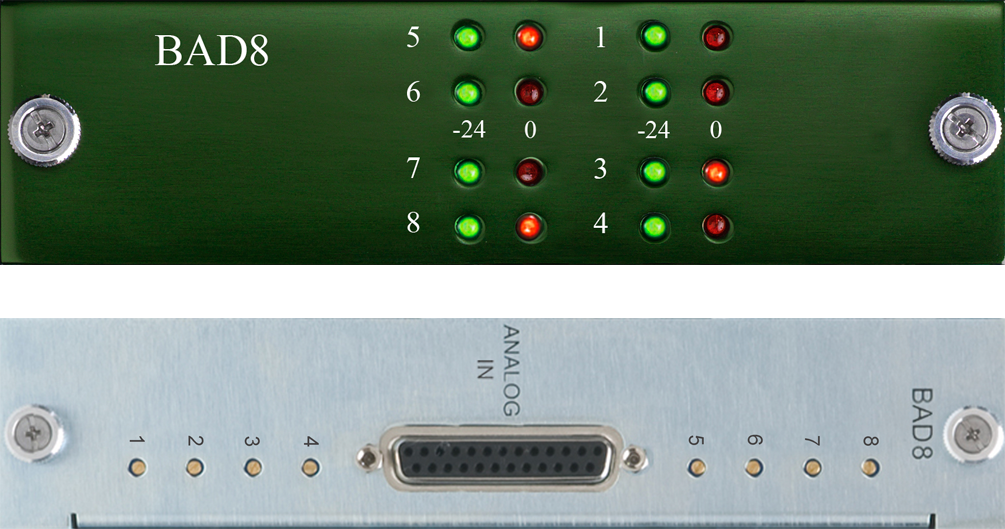

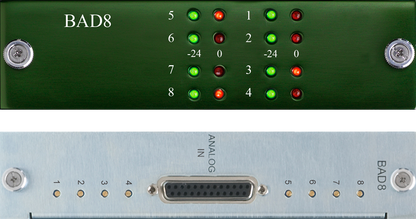

Burl BAD8 A/D Converter Card

Burl BAD8 A/D Converter Card

€3.290,00
€3.290,00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Chassis
In Stock, usually ships within 1-2 business days

BAD8 A/D CONVERTER CARD

An 8-channel analog-to-digital converter daughter card for the B80 and B16 Mothership, the BAD8 is the result of over 25 years of R&D A/D design experience. Following on the success of the B2 Bomber ADC, it employs a next-generation analog circuit path and the latest in analog-to-digital conversion technology - a no-compromise design using all class-A, discrete transistor circuitry and the legendary BX1 transformer-coupled input.

The BAD8 benefits from a newer, smaller form factor BX1 transformer that allows for higher channel density per card, giving it great tone with even more detail and amazingly low latency. Daughter card for the BURL Audio Mothership modular system, compatible with both the B80 and B16 chassis.

View full details
>>

Product Description

BX1 Transformer Conversion at Higher Channel Density

The BAD8 carries forward the legendary BX1 transformer-coupled input from the B2 Bomber ADC into the Mothership platform, now in a smaller form factor that allows 8 channels of class-A, discrete transistor conversion on a single card.

Loaded into a B80 chassis, BAD8 cards deliver the same tonal signature that made the B2 Bomber ADC famous, scaled up to dozens of channels for full-console tracking rigs.

>>

Features & Specs

BAD8 Features & Specs

  • 8-channel ADC
  • 8-channel DB25 connectivity (Tascam style)
  • All class-A, NextGen Analog
  • Proprietary, high definition BURL Audio BX1 transformer
  • Avid delay matching
  • ADC filter select
  • Frequency response @48kHz: 10Hz-22kHz, +/-0.1dB
  • Frequency response @96kHz: 10Hz-30kHz, +/-0.1dB, -0.3dB @ 40kHz
  • Frequency response @192kHz: 10Hz-30kHz, +/-0.1dB, -1.5dB @ 90kHz
  • 115dB Dynamic Range
  • -96dB THD+N, full scale output = +22dBU
