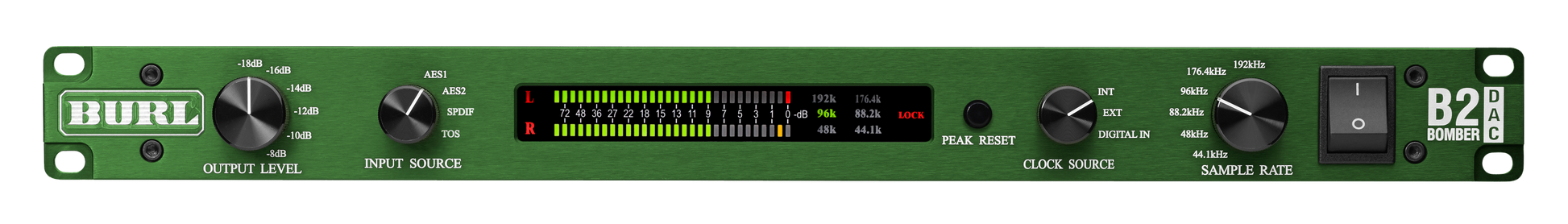

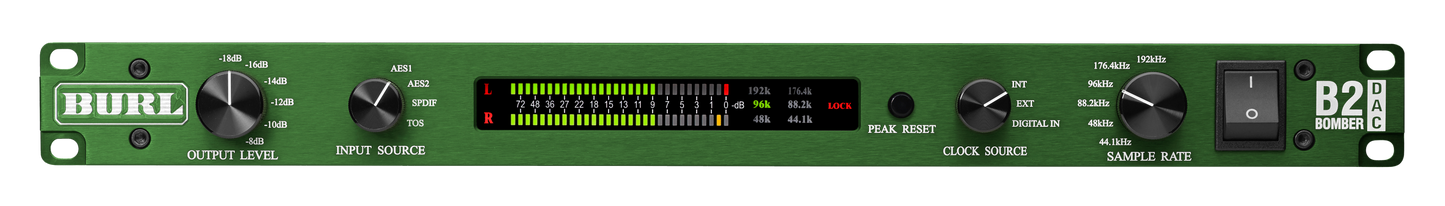

Burl B2 Bomber DAC

The Musical Half of the B2 Bomber Signal Chain

The B2 Bomber DAC pairs BURL Audio's NextGen BOPA11 all-discrete op-amps with passive filtering and a completely capacitor-free, class-A signal path. That combination gives it a distinctly analogue character - smooth highs, a large low end and a musical, glued-together quality that budget converters simply cannot match.

Both the B2 ADC and B2 DAC share identical, extremely low-jitter clocking, precision RMS/peak metering and audiophile stepped attenuators, so the two units track and monitor with total consistency across a full session.

B2 Bomber DAC Features & Specs

• 44.1kHz to 192kHz, 24-bit, 2-channel DAC
• NextGen BOPA11 all-discrete op-amps with passive filters
• All class-A, zero capacitor signal path
• Audiophile quality 6-position attenuator with standard headroom settings
• High definition metering with simultaneous RMS and peak indication

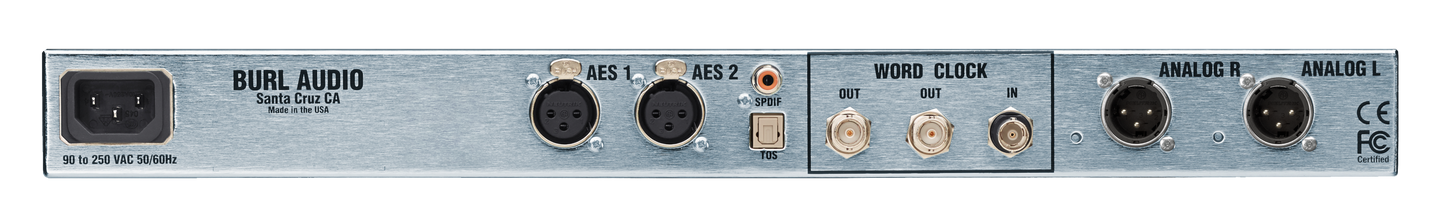

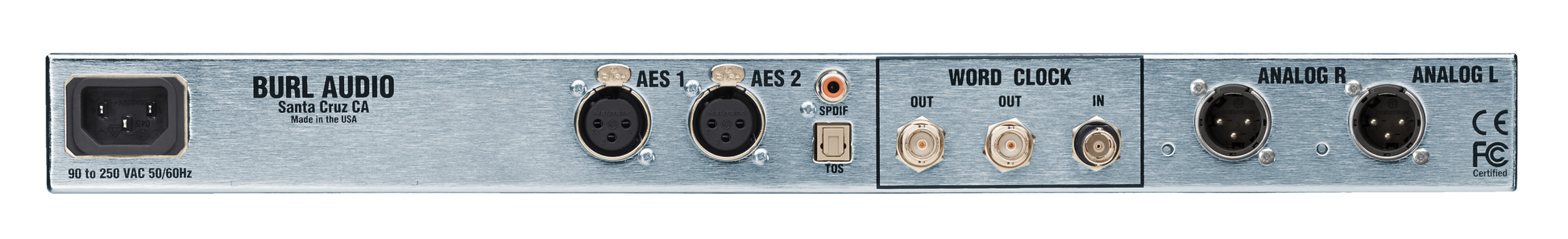

• 2x AES, S/PDIF and Toslink input
• BNC word clock input with two extremely low-jitter outputs
• Frequency response @48kHz: 10Hz-22kHz, +/-0.1dB
• Frequency response @96kHz: 10Hz-30kHz, +/-0.1dB, -0.3dB @ 40kHz
• Frequency response @192kHz: 10Hz-30kHz, +/-0.1dB, -1.5dB @ 90kHz
• 115dB Dynamic Range
• -96dB THD+N, full scale output = +22dBU
• Rugged, Made in USA design

DOCUMENTATION:

• B2 Bomber Quick Start Guide
• TapeOp Review of B2 ADC/DAC
