Burl B2 Bomber ADC

An Analog Front End Worthy of Your Best Mic Pre

Open up a typical ADC and, even in an expensive interface, you'll often find 10-cent capacitors and 25-cent op-amps behind the conversion stage. BURL Audio solved this by designing an analog audio path that complements the analog-to-digital process itself, using a discrete, class-A, zero-feedback, zero-capacitor signal path built around the proprietary BX1 transformer.

The result is a converter built for tracking, mixing and mastering alike: 30-segment peak and RMS metering tells you exactly how hot you're running the signal, and a 6-position attenuator lets you dial in input headroom to taste. Pair the B2 Bomber ADC with a B2 Bomber DAC for the complete B2 Bomber signal chain.

B2 Bomber ADC Features & Specs

• 44.1kHz to 192kHz, 24-bit, 2-channel ADC
• Proprietary, high definition BURL Audio BX1 transformer input
• All class-A, discrete transistor signal path with zero feedback, zero capacitors
• Audiophile quality 6-position attenuator with standard headroom settings

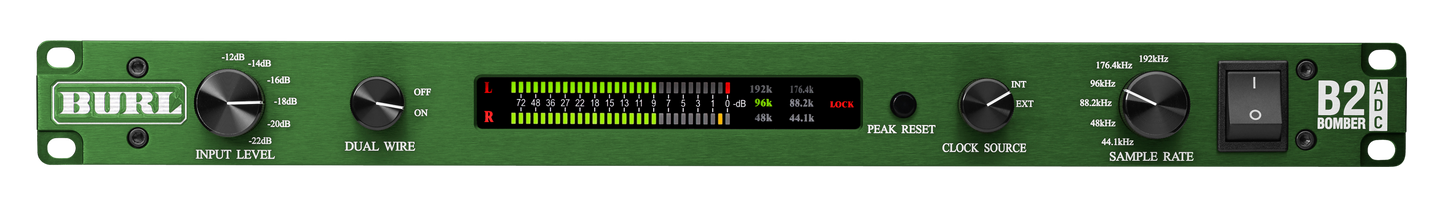

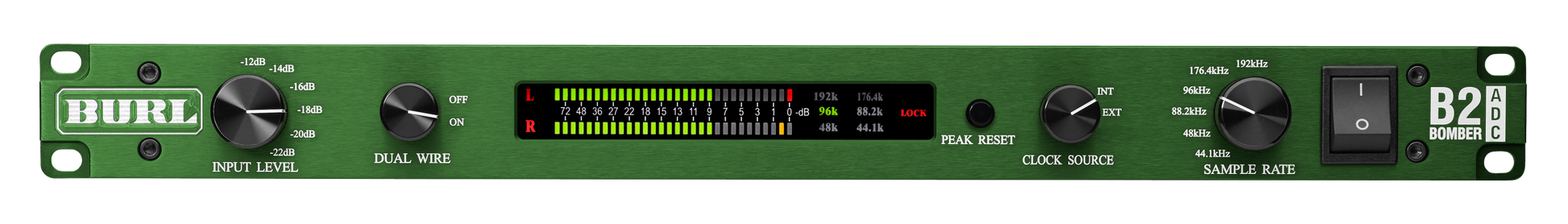

• High definition metering with simultaneous RMS and peak indication

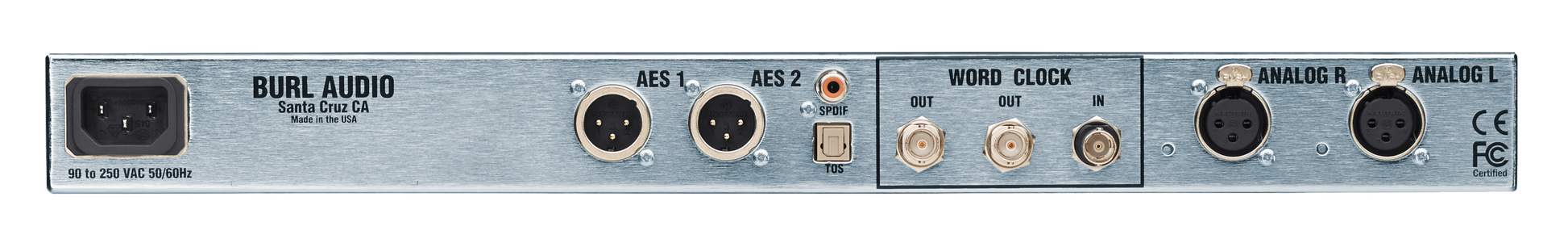

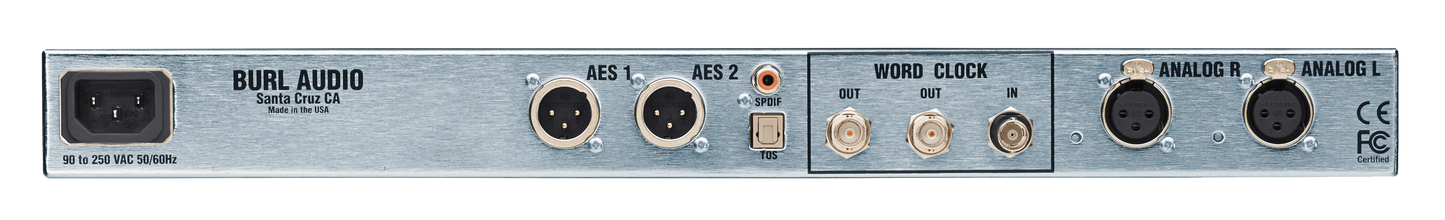

• 2x AES, S/PDIF and Toslink output
• BNC word clock input with two extremely low-jitter outputs
• Frequency response @48kHz: 12Hz-22kHz, +/-0.1dB
• Frequency response @96kHz: 15Hz-46kHz, +/-0.1dB
• Frequency response @192kHz: 18Hz-94kHz, +/-0.1dB
• 120dB Dynamic Range (A-weighted), 117dB (unweighted)
• -100dB THD+N (+4dBU = -18dBFS), -94dB THD+N (+21dBU = -1dBFS)
• Rugged, Made in USA design

DOCUMENTATION:

• B2 Bomber Quick Start Guide
• TapeOp Review of B2 ADC/DAC
