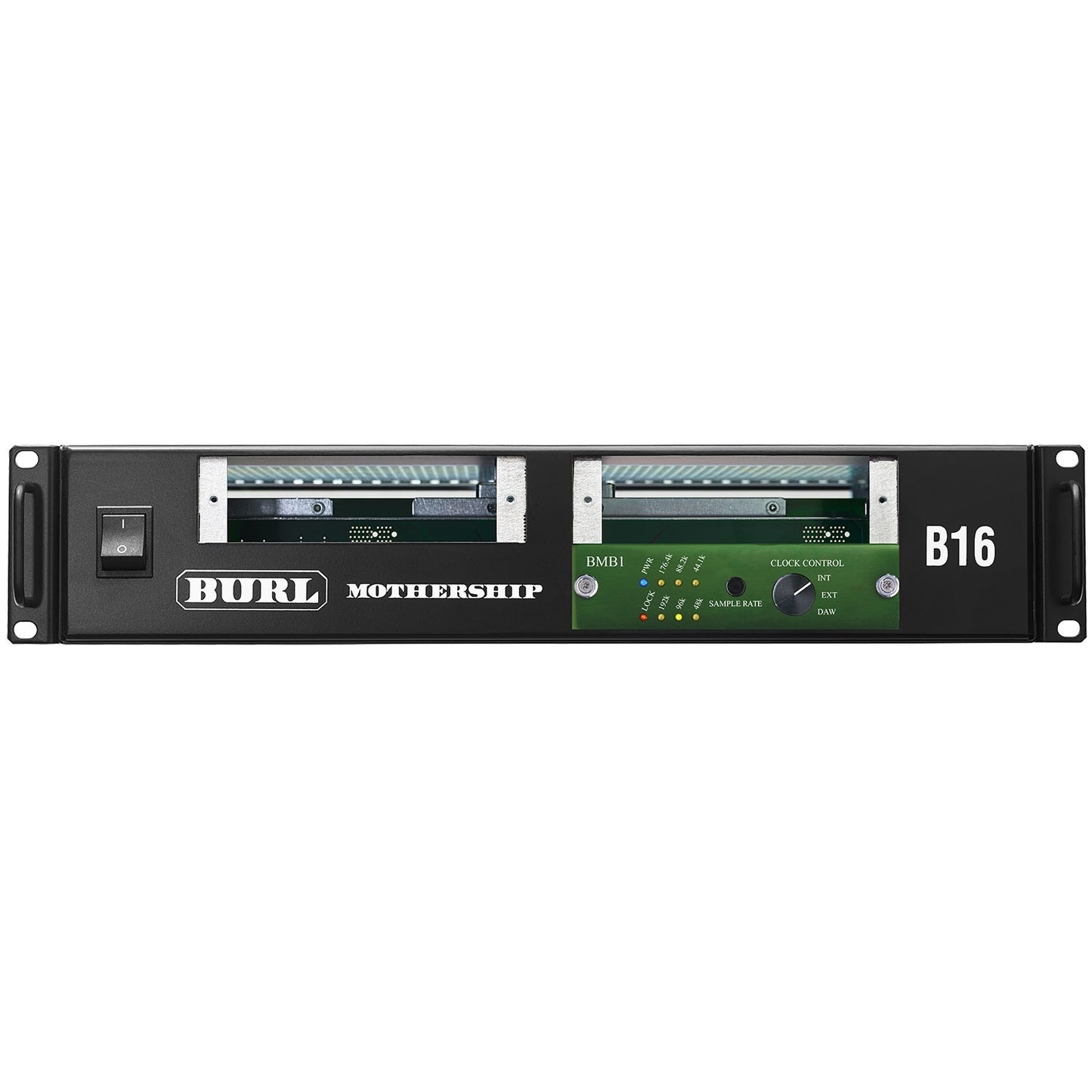

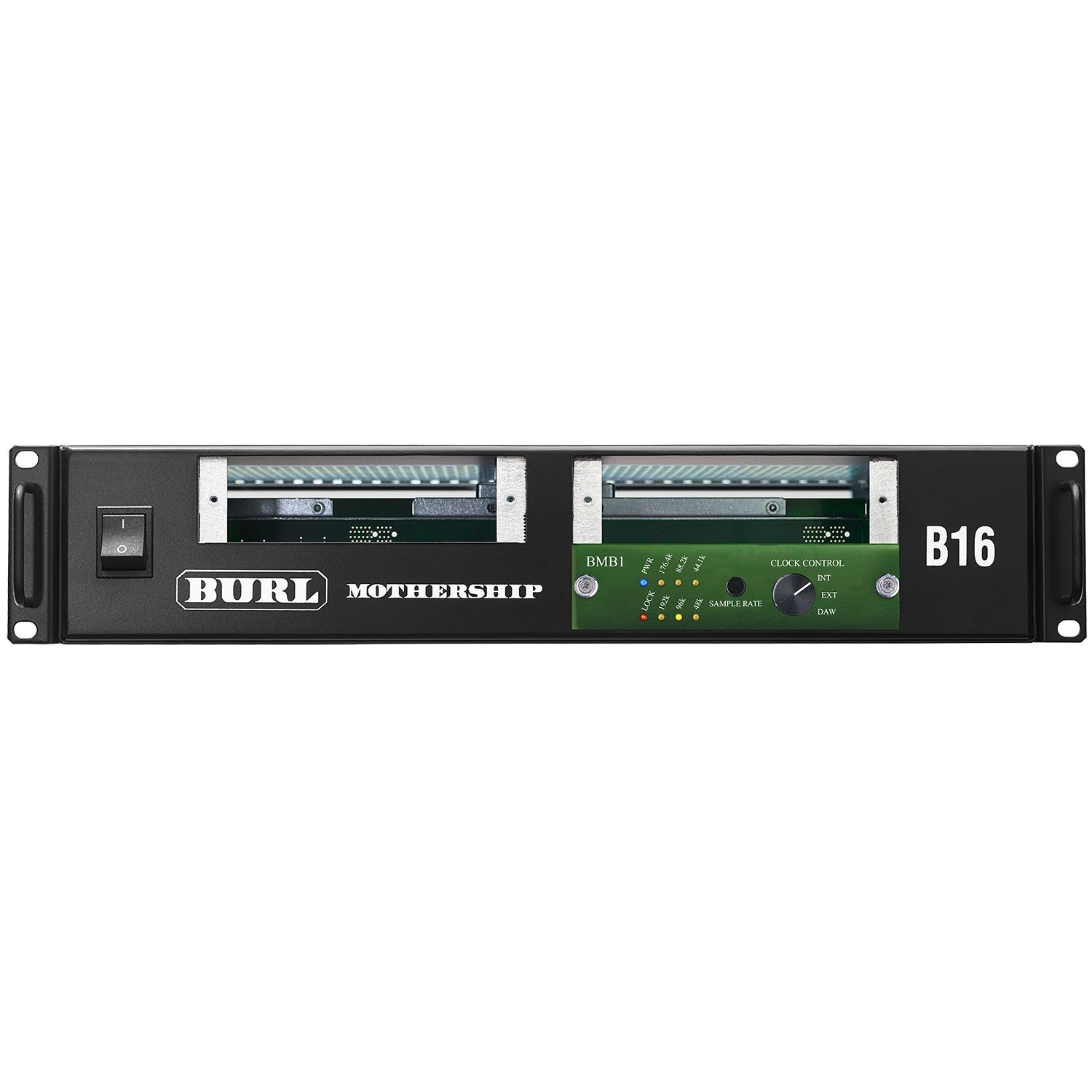

Burl B16 Mothership

The Full Mothership Sound, In a 2U Chassis

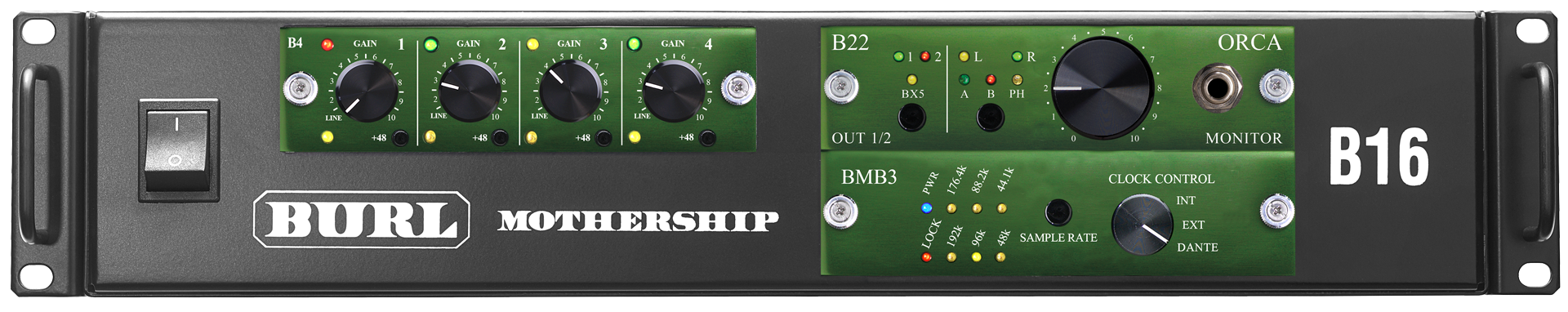

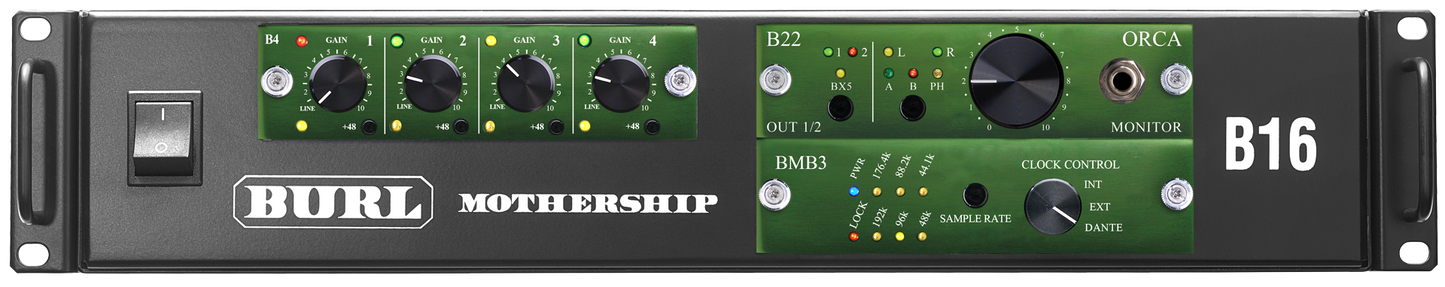

The B16 Mothership packs the same class-A, all-discrete circuitry and the exact same daughter cards as the B80 into a compact 2-slot, 2U chassis with an internal power supply. A typical setup is an 8-in/8-out interface, but the same 2 slots can also be configured as a 16-input tracking front end or a 16-output portable mix rig.

Choose Your Digital Connectivity

Every B16 ships as a complete chassis with a motherboard installed, which sets how the unit talks to your DAW or network. The BMB1 gives you dual, both-primary DigiLink ports for direct Pro Tools connectivity. The BMB2 provides dual optical MADI ports. The BMB3 brings Dante networking. The BMB4 connects to a Waves SoundGrid network. The BMB6, exclusive to the B16, offers 8 channels of AES/EBU IO via a single DSUB25 connector for a simple, compact digital interface.

B16 Mothership Chassis Features & Specs

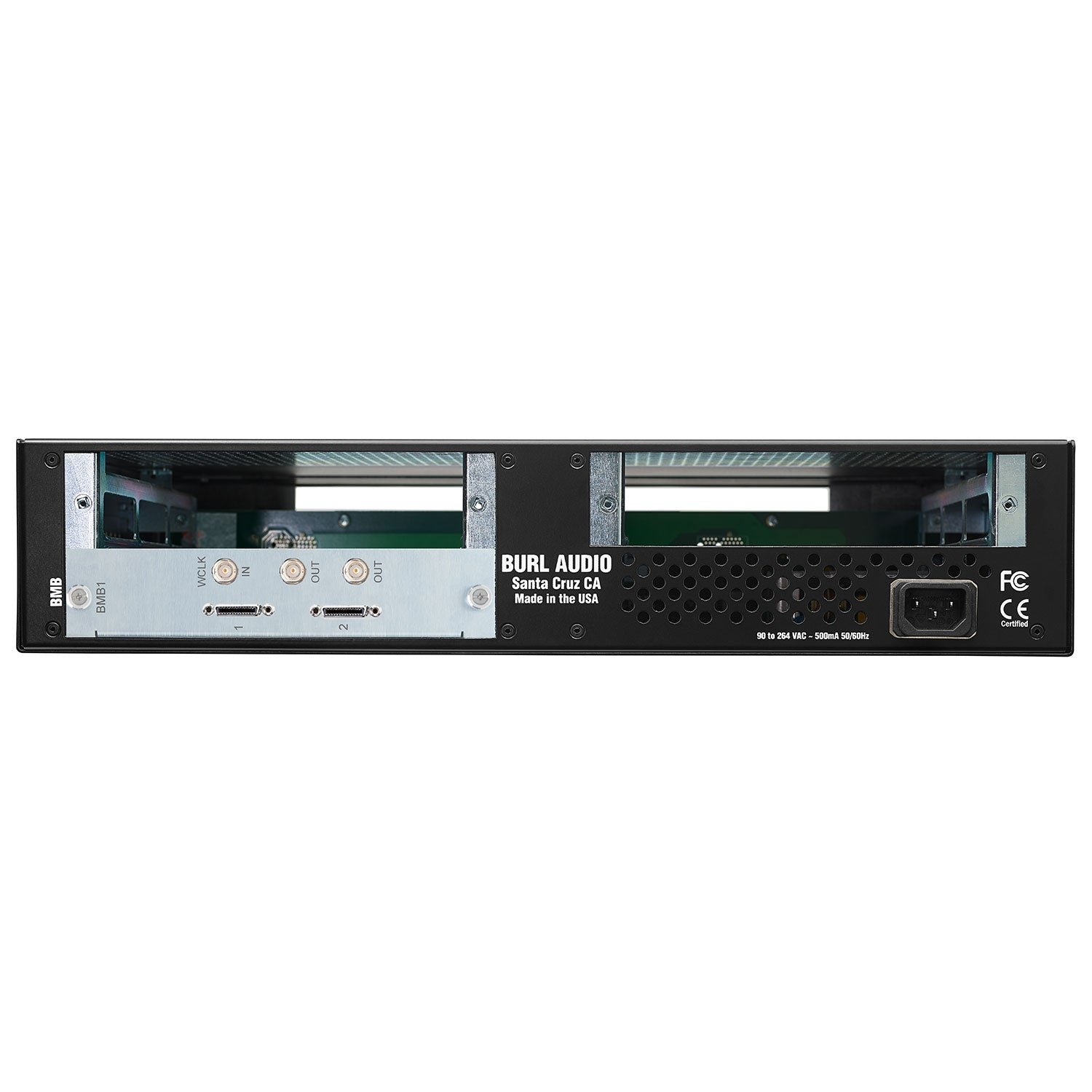

• 2U heavy-duty rack chassis with internal power supply
• 2 daughter card slots - accepts 4- and 8-channel AD/DA, AES/EBU and BCLK cards
• Uses the exact same I/O daughter cards as the B80 Mothership
• Proprietary BX1 ADC transformer and BOPA4 discrete DAC op-amp on every channel
• 1 BNC Word Clock In, 2 BNC Word Clock Out
• All-discrete, class-A signal path throughout

Motherboard Options

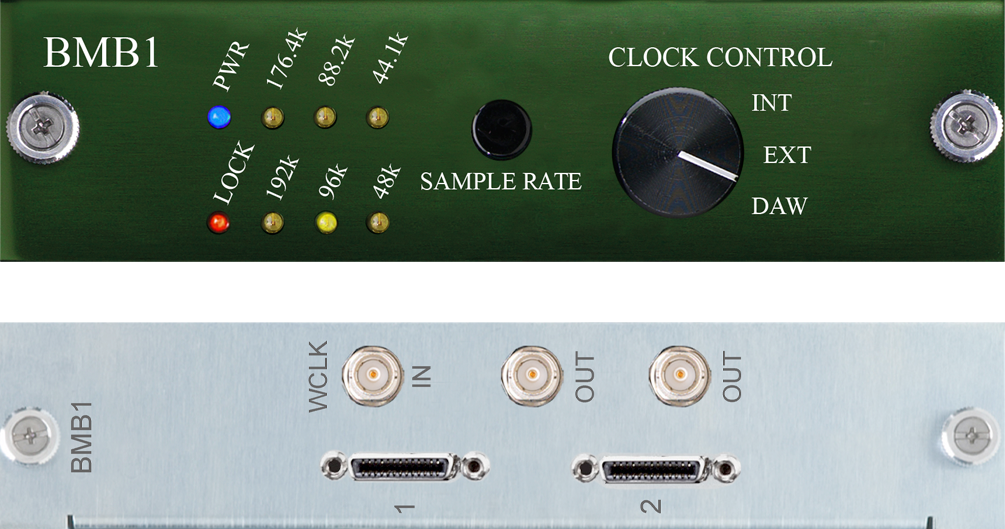

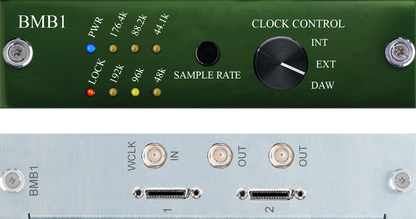

• BMB1 Digilink - 2 both-primary DigiLink ports, 64-channel IO at all sample rates

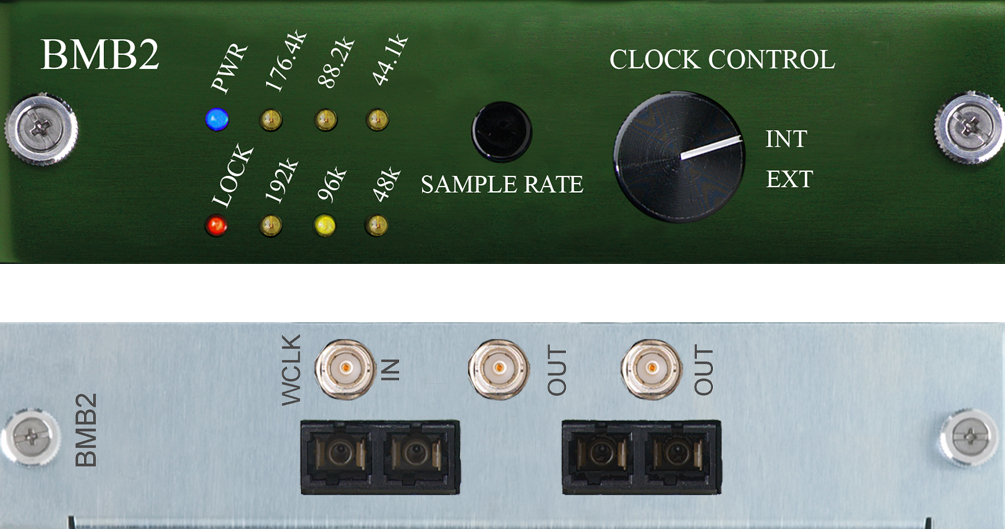

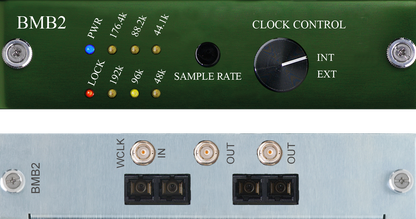

• BMB2 MADI - 2 optical MADI ports, 64-channel IO at 44.1/48/88.2/96k, 32-channel at 176.4/192k

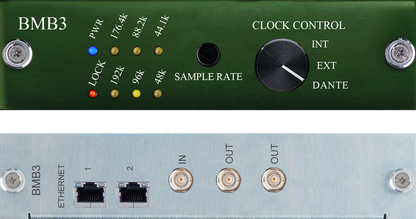

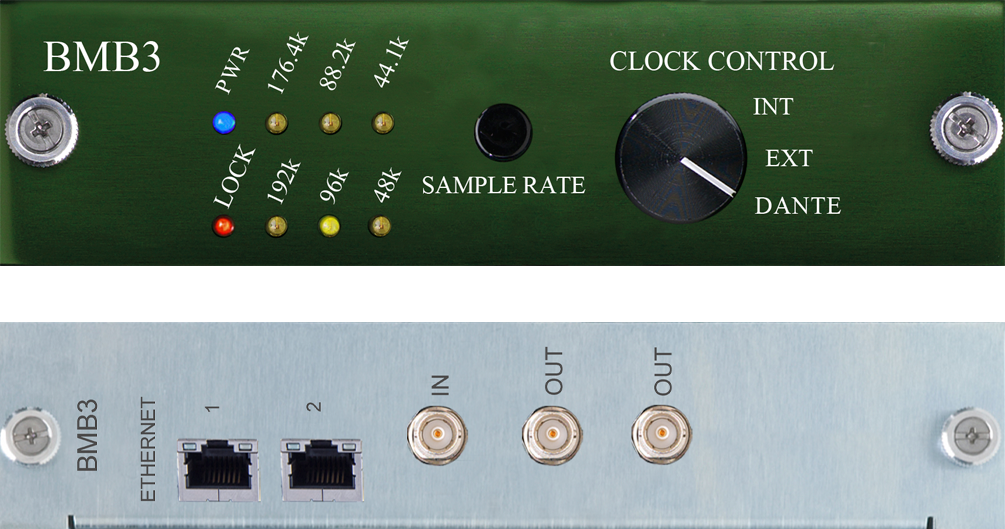

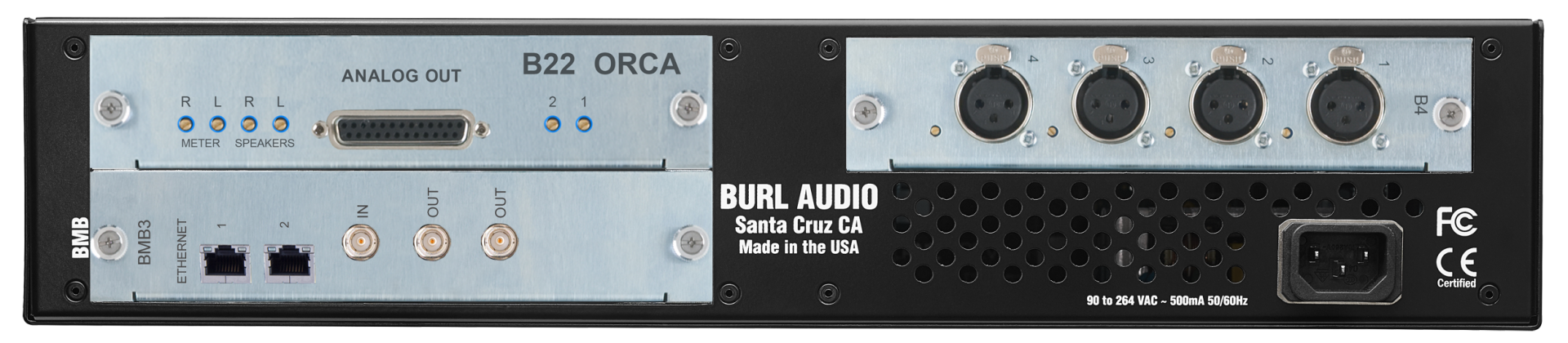

• BMB3 Dante - 2 Dante Ethernet ports (1 active standard), 64-channel IO at 44.1/48/88.2/96k, 32-channel at 176.4/192k

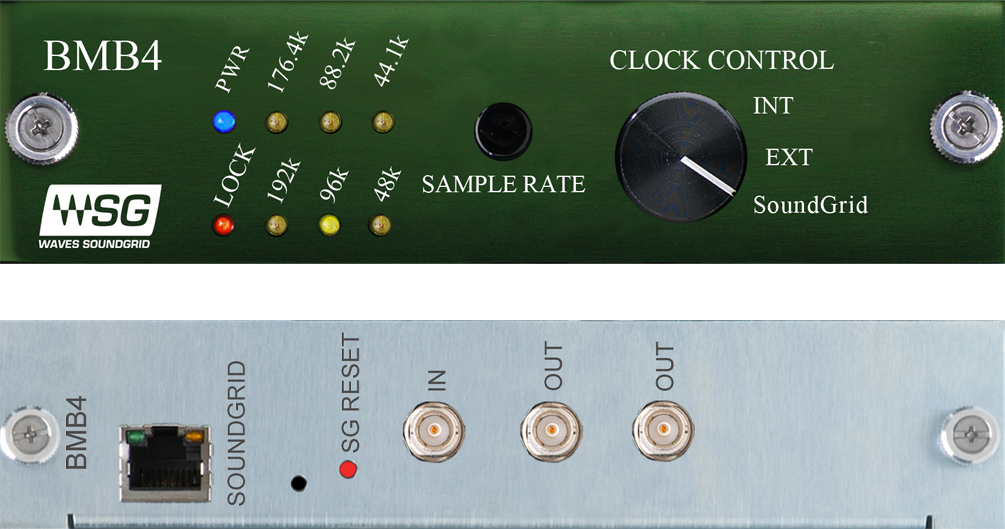

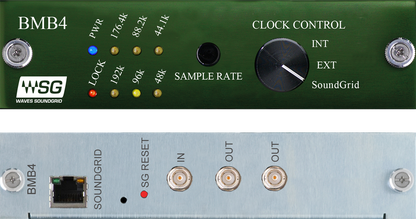

• BMB4 SoundGrid - 1 SoundGrid Ethernet port, 64-channel IO at 44.1/48/88.2/96k

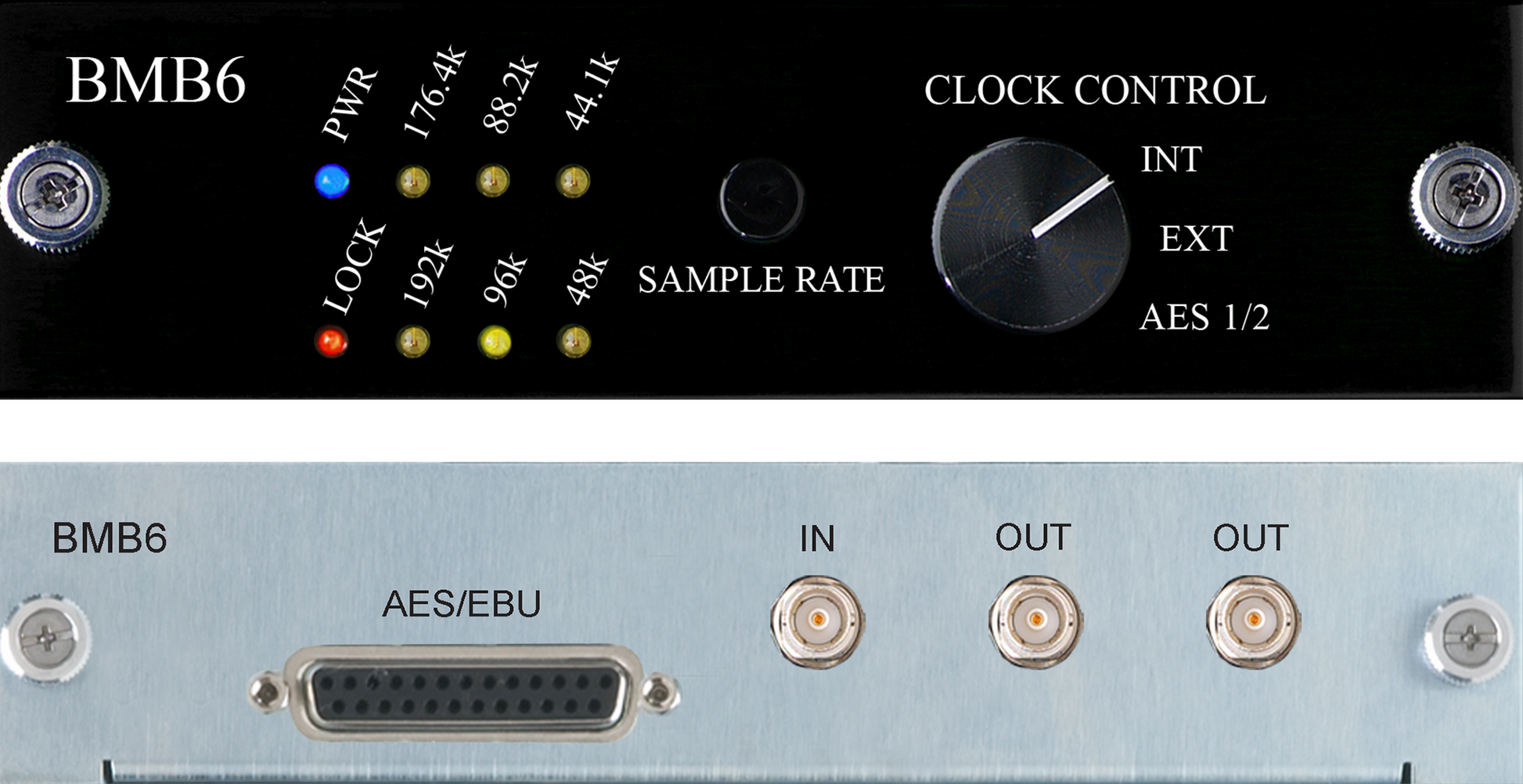

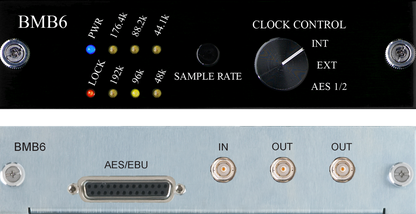

• BMB6 AES/EBU - 8-channel AES/EBU IO via DSUB25 (Tascam format), exclusive to the B16 chassis

DOCUMENTATION:

• B16 Mothership Manuals
• B16 BMB1 Quick Start Guide
• B16 BMB2 Quick Start Guide
• B16 BMB3 Quick Start Guide
• B16 BMB4 Quick Start Guide
• B16 BMB6 Quick Start Guide
