Opto Compressor (B-Stock)
Opto Compressor (B-Stock)
Decadent & Elegant - this is as good as it gets. You can do DIFFERENT, but you can’t do BETTER.
This is the final production run!
When
AudioScape runs out of cases, this product will be sunset. This is your last chance to get one at a killer price.
The AudioScape Opto Comp is a meticulously crafted optical tube compressor that pays homage to a renowned compressor from the 1960s. That compressor was highly regarded for its musicality, smooth compression, and distinctive tone achieved by using an incandescent light bulb and optical sensor to control dynamic processing, and passing audio through its tubes and transformers.
Inspired by that widely acclaimed 1960's optical tube compressor, the AudioScape Opto Comp is a faithful re-creation using AudioScapes own T4B opto-attenuator, NOS Tubes, and big fat iron.
**NOTE: EURO VOLTAGE UNIT (230-240V)
**HASSLE-FREE 2-YEAR WARRANTY INCLUDED!
Collapsible content
Product Description
THE WORLD’S MOST BELOVED OPTICAL COMPRESSOR

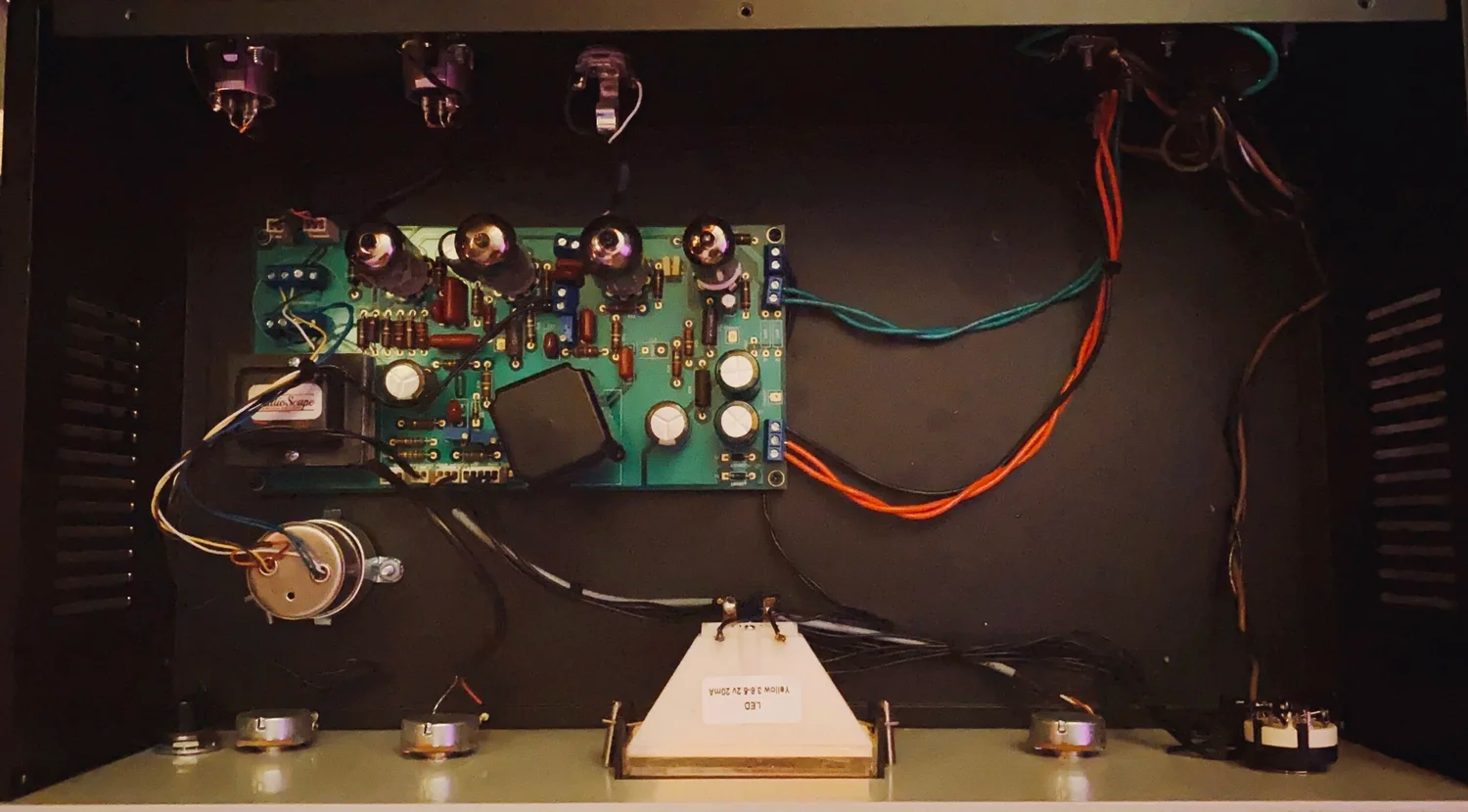

The AudioScape Opto Comp is a faithful reproduction of the original circuit, with some modern-day modifications to enhance its performance. To ensure authenticity and unparalleled box-tone, it incorporates NOS tubes and NOS carbon-composite resistors. At the heart of the Opto Comp is its custom T4B opto-attenuator, made in-house by AudioScapes very own techs.
Overall, the Opto Comp strives to recreate the sonic elegance of the legendary compressor it is based on, utilizing the finest components and craftsmanship.
MORE VERSATILE

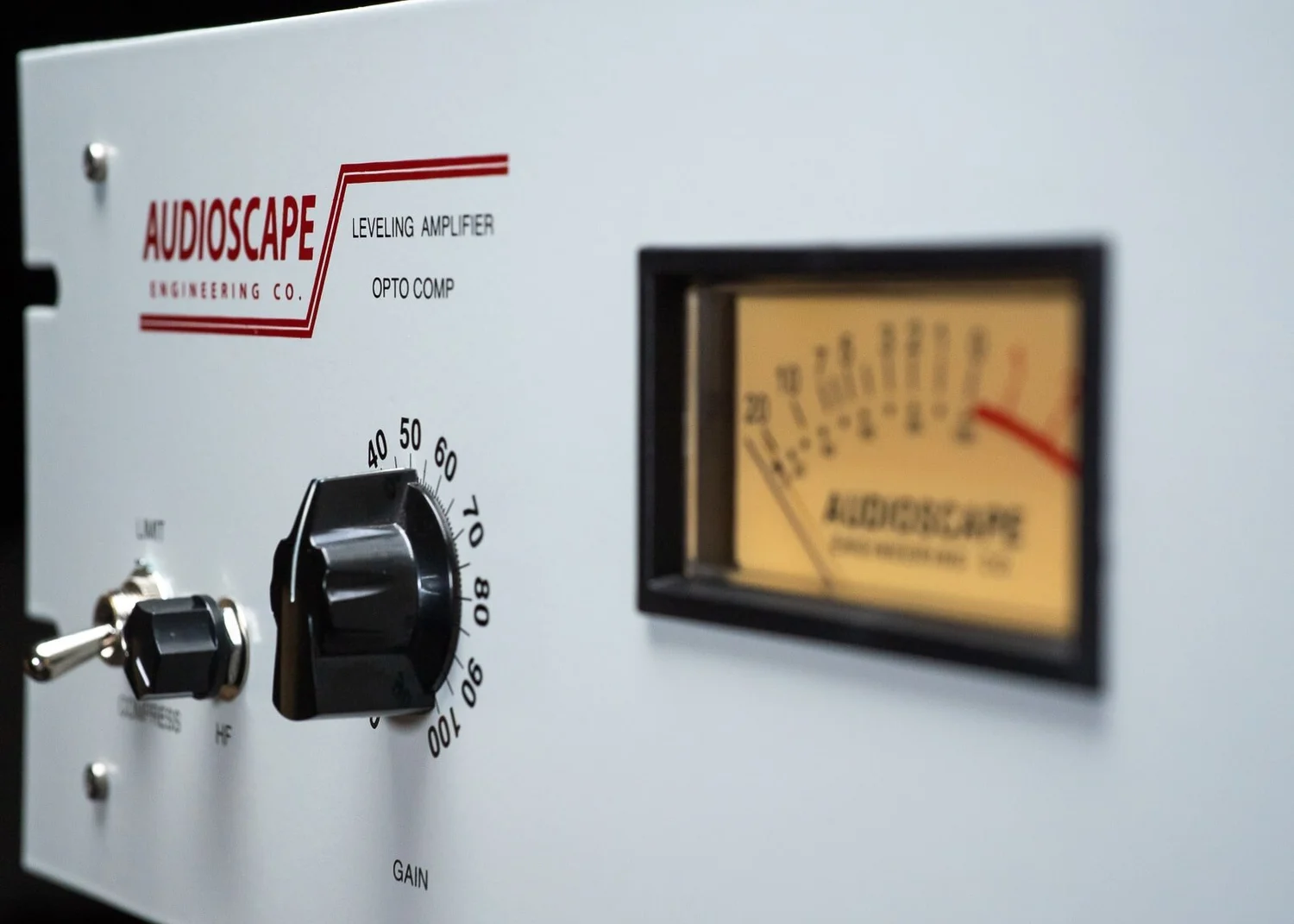

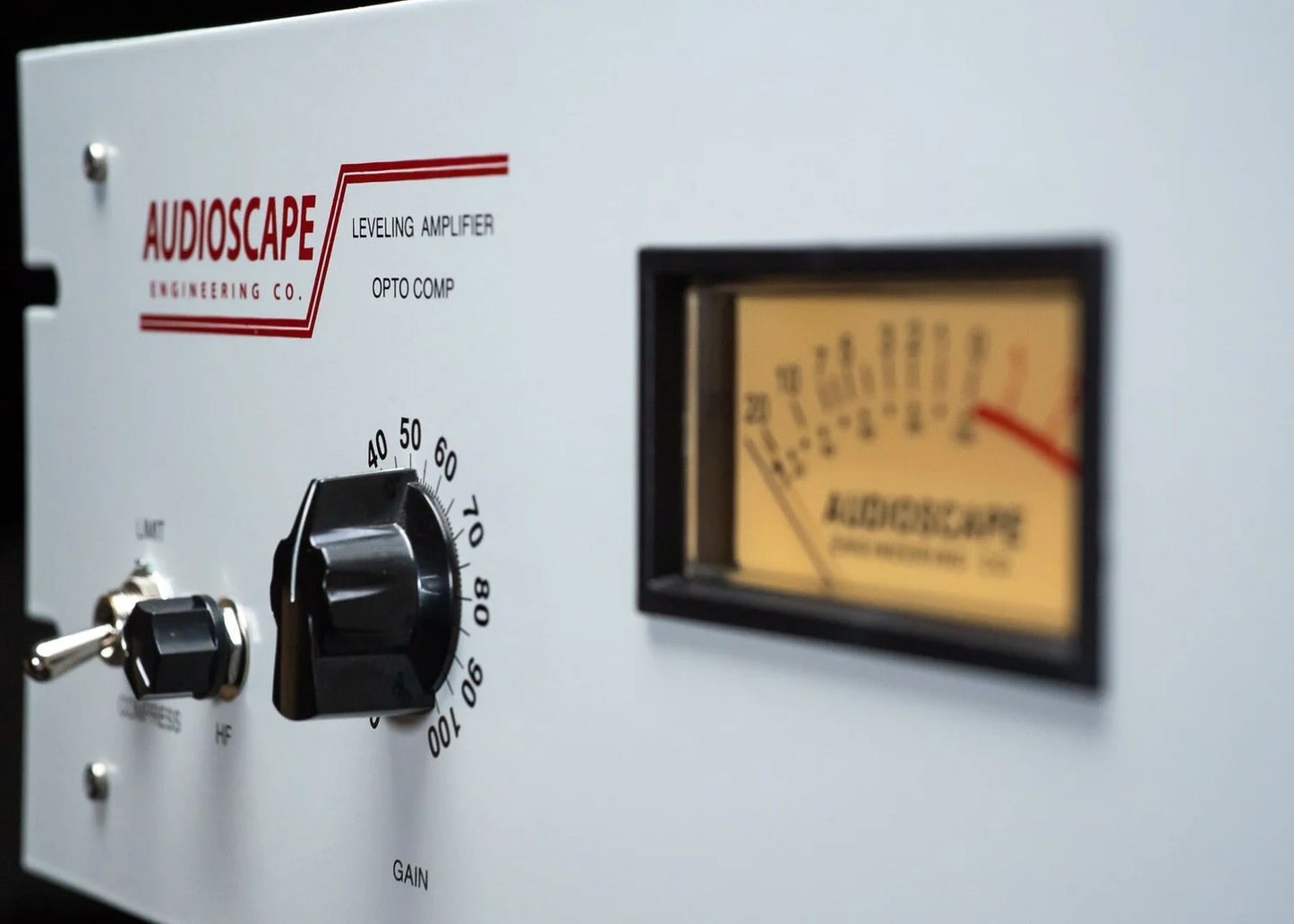

One of AudioScape's most significant modern enhancements was moving the R37 high frequency control trim pot to the front panel of the unit. In the 1960’s, this control was located on the back and was set by the factory depending on the application. By moving it to the front, it is now easily accessible and convenient to adjust.
Originally, this trim pot was factory set to a "flat" side-chain response for recording purposes (fully-clockwise). Now accessible via the front panel, turning it counter-clockwise will increase the resistance, filtering out high energy low frequency signals that could unnecessarily trigger compression. This filtering of low frequencies to the T4B opto-attenuator shifts the focus of the compression to higher frequencies.
T4B BUILT IN-HOUSE
AudioScape hand-builds their own T4B opto-attenuators in the vintage tradition, using the resistor across the panel, true to the original schematics, as opposed to the newer JBL-era T4Bs used as the standard for other manufacturers.
TECH RANT
True to the original spec AudioScape uses:
- 1/2 watt carbon composite resistors are used
- Cornell Dubilier, Panasonic and Nichicon capacitors throughout.
- NOS vintage tubes and custom-wound Cinemag transformers.
- T4B Opto-Attenuators built by AudioScape
AudioScape's T4B Opto-Attenuators are manufactured in-house using the highest grade photocells and replica EL Panels.
AudioScape compares their T4B against vintage UREI, Kenetek and Drip T4s which use similar components i.e, carefully matched Silonex NSL5910, Replica EL Panels, etc.
Features & Specs
FEATURES & SPECS:
- Handcrafted in the USA

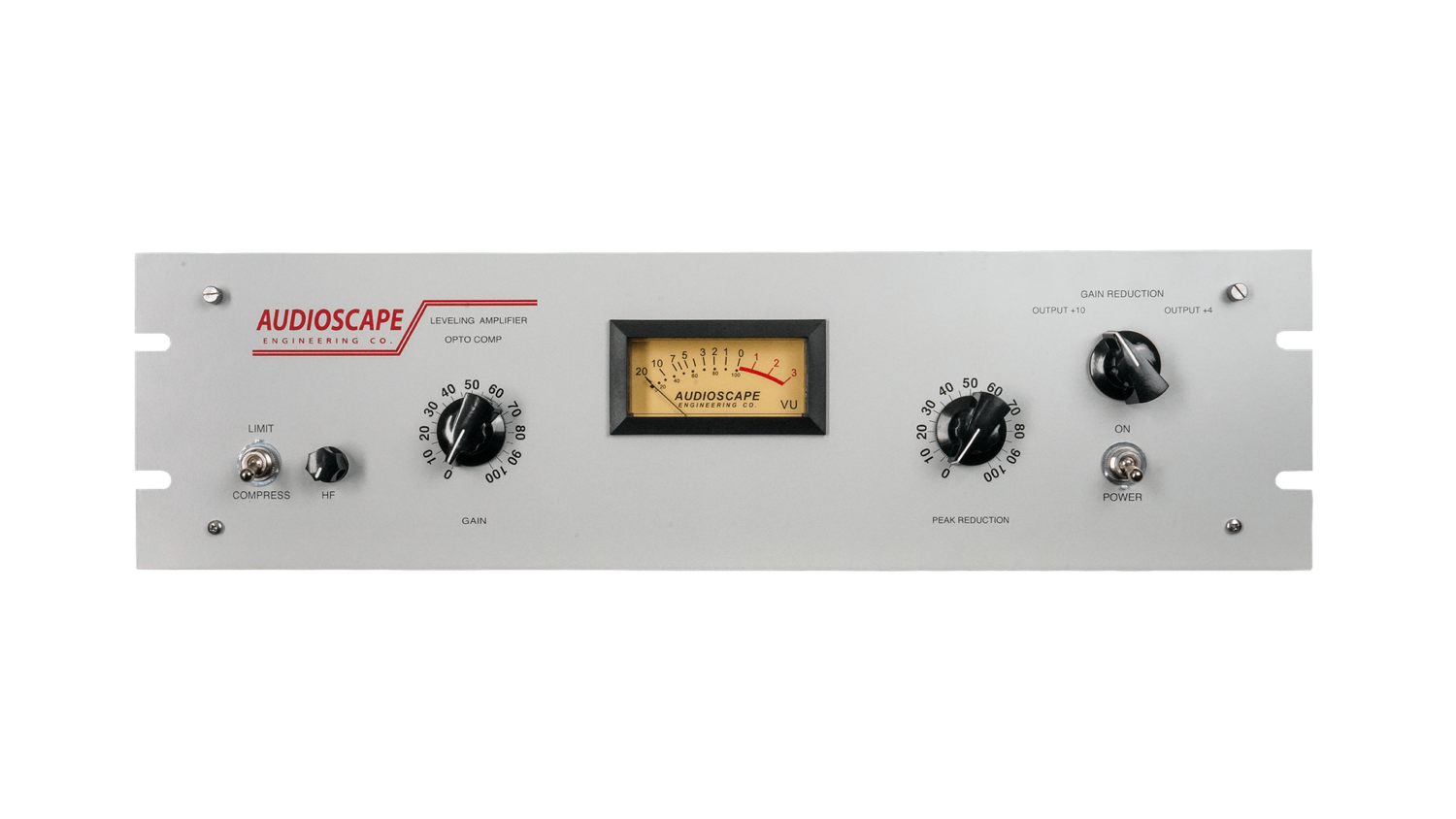

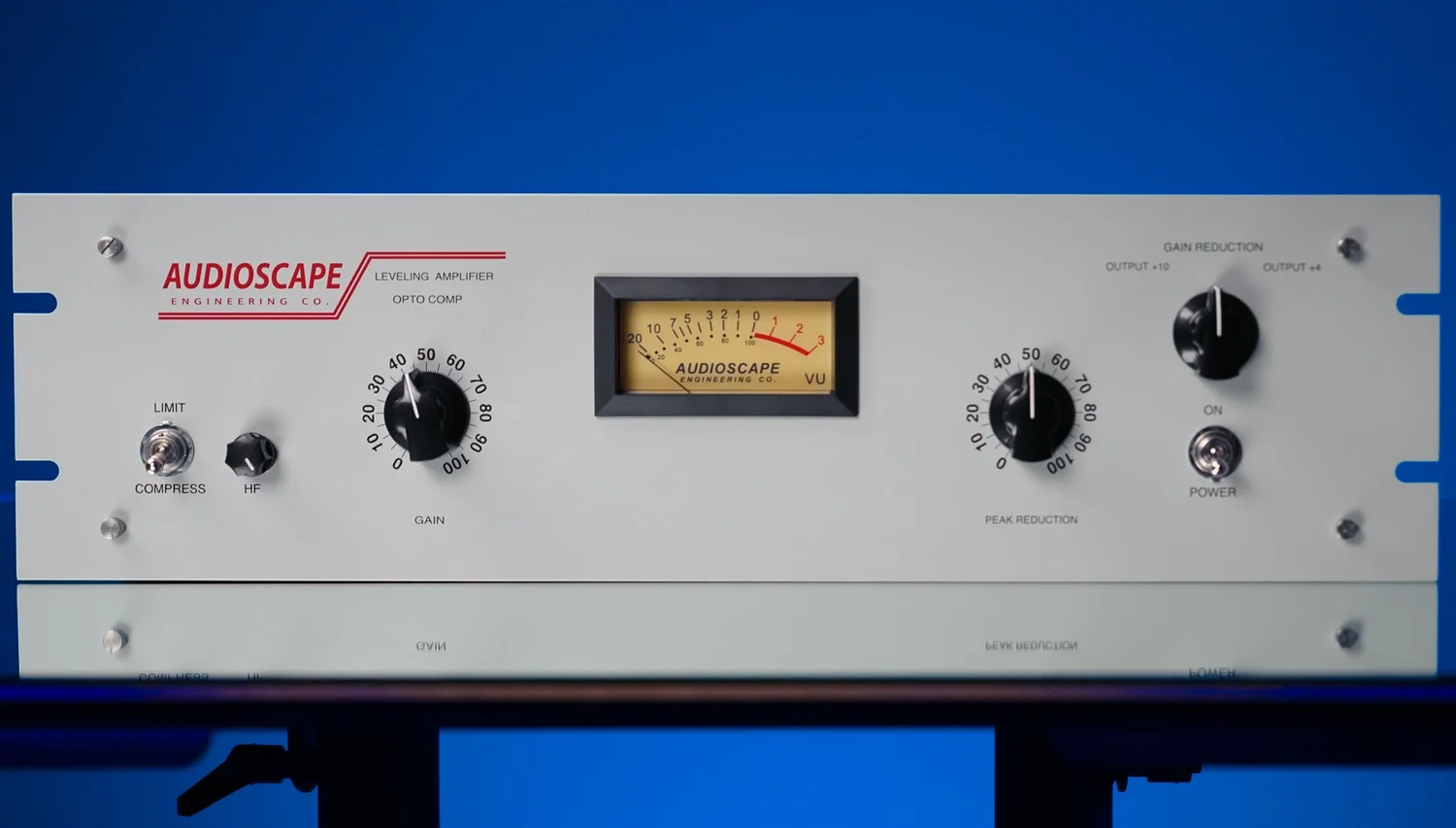

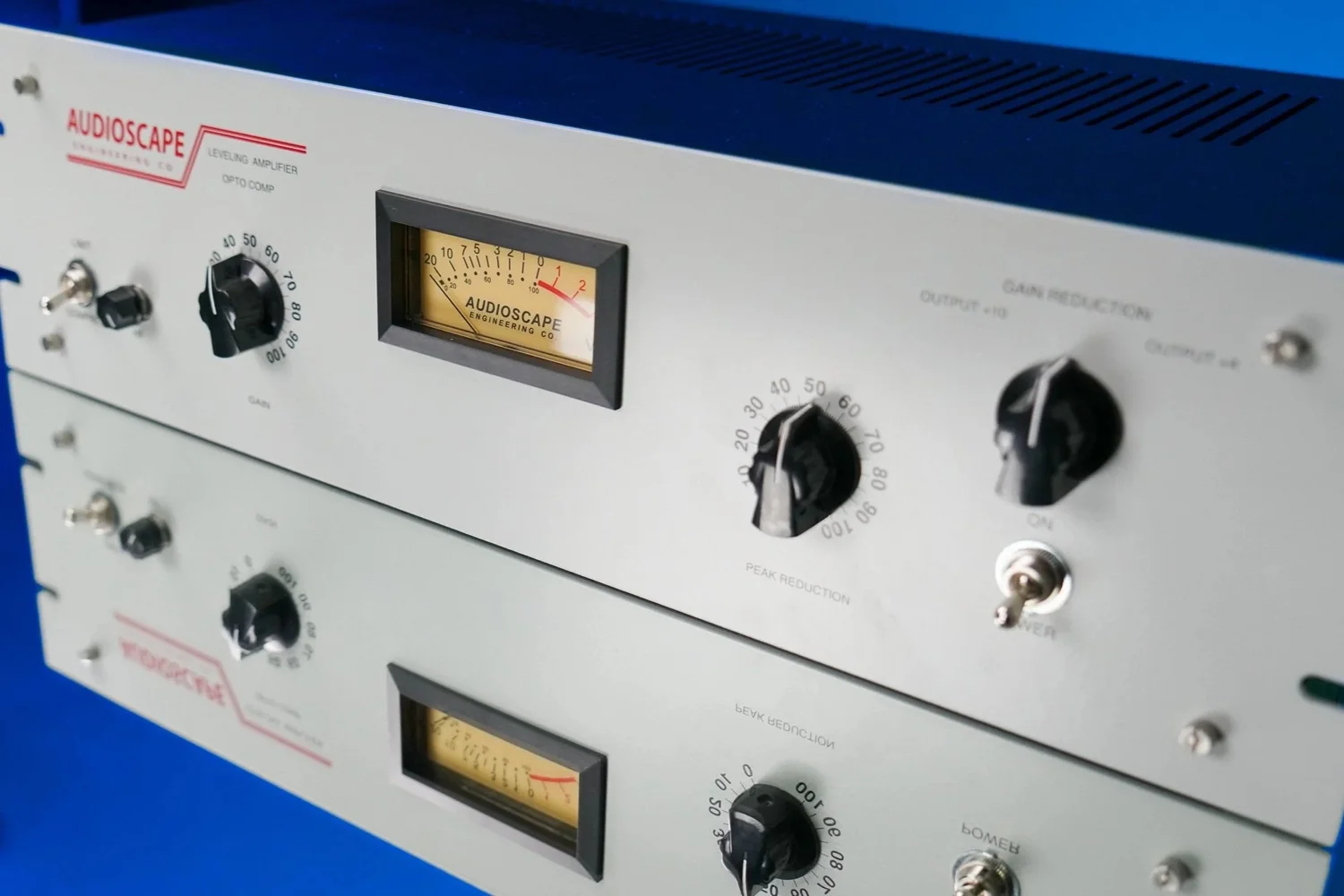

- Stylish 3U 19" Rackmount USA Made Case and Front Panel (aesthetically period-correct)
- Premium, NOS Tubes in Audio Section - New Production Tubes Don't Cut it in this Circuit
- AudioScape T4B Opto-Attenuator - Custom, Hand-Built and Sonically Period-Correct (true to vintage tradition).
- Exclusive, Custom-Wound Input Transformer (exacting replica of the original)
- Exclusive, Custom-Wound Output Transformer (exacting replica of the original)
- Cornell Dubilier (CDE) Polypropylene Capacitors
- Panasonic Radial Polyester Capacitors
- NOS Allen-Bradley Carbon Comp Resistors
- Carling (the BEST!) Toggle Switches
- +40dB Make-up Gain

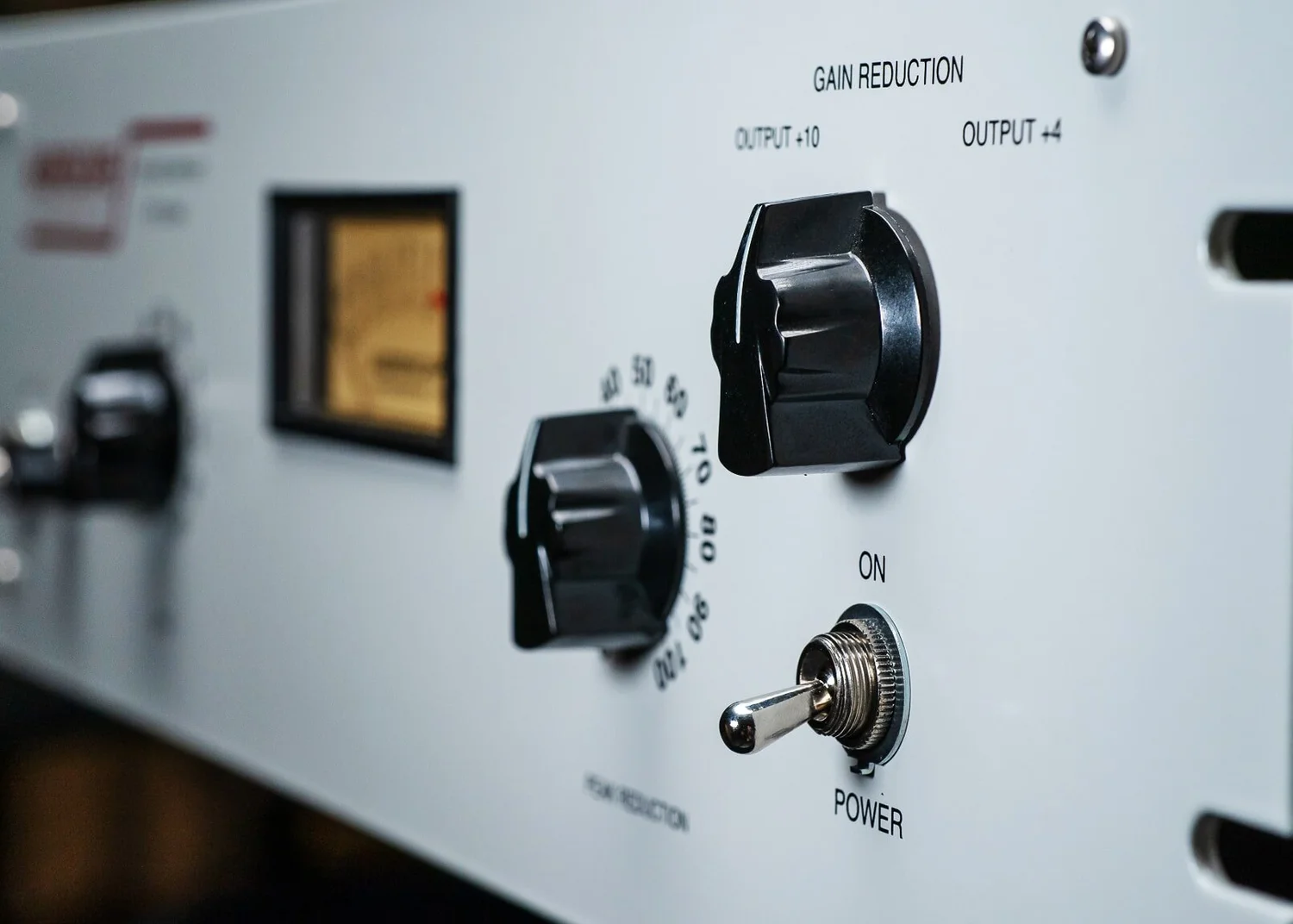

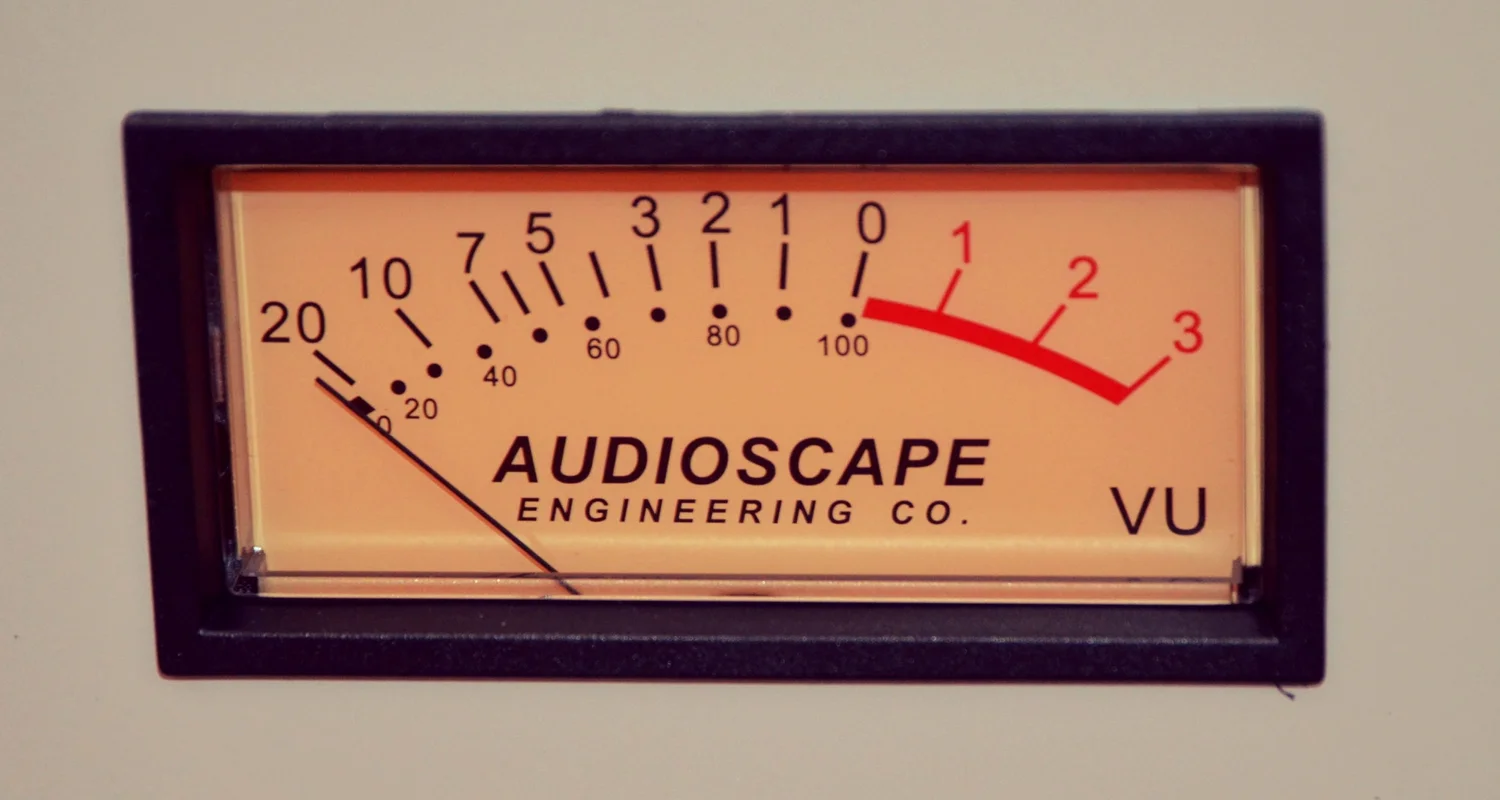

- Analog dB Gain-Reduction Meter Perfectly Calibrated
- Davies Original-Styled Knobs
- Electronically Balanced +4dBu circuitry

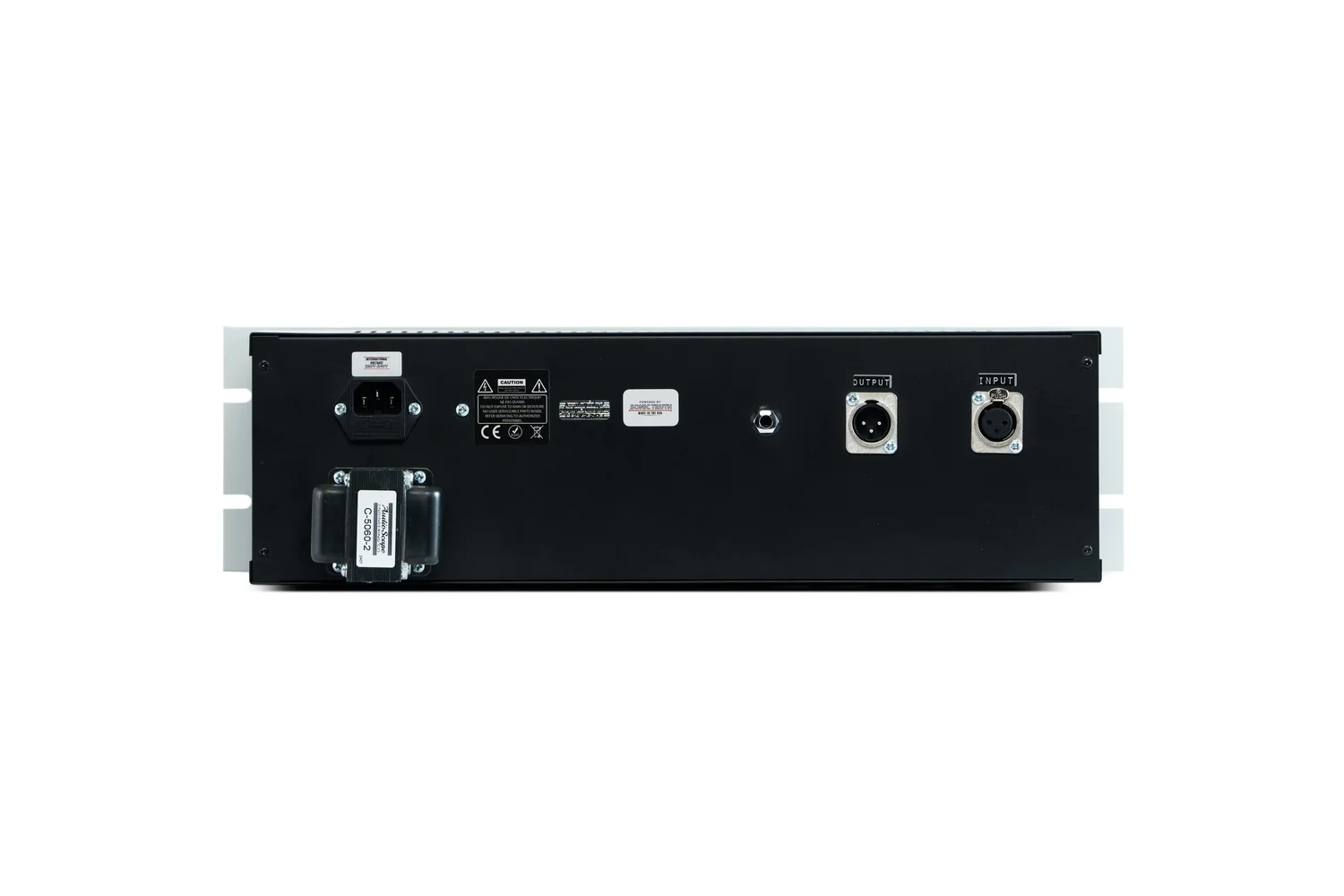

- Neutrik XLR Input and Output connectors
- Alpha potentiometers and Rotary Switch
- Stereo Link via Cliff TRS Jack (Located on Back of Unit)
- Custom 120V/240V Power Transformer
**specifications, parts & pricing subject to change because sh*t happens ;-)
